Description

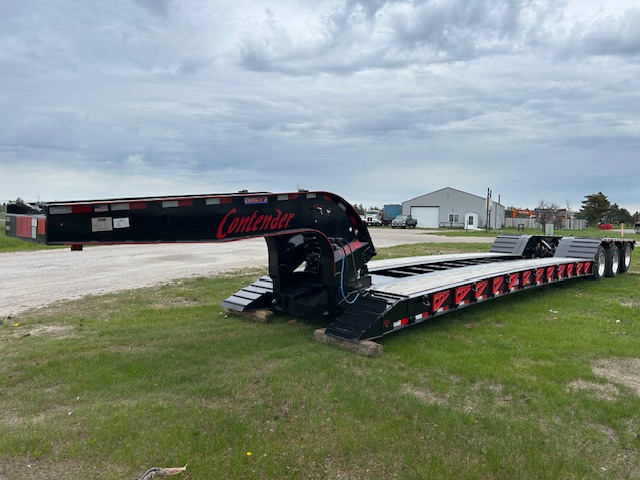

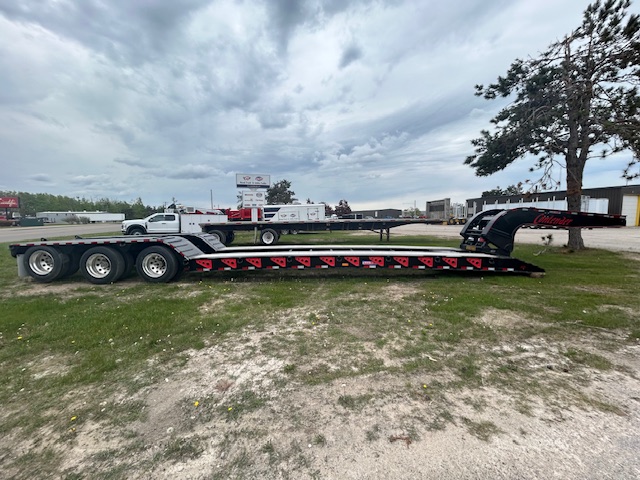

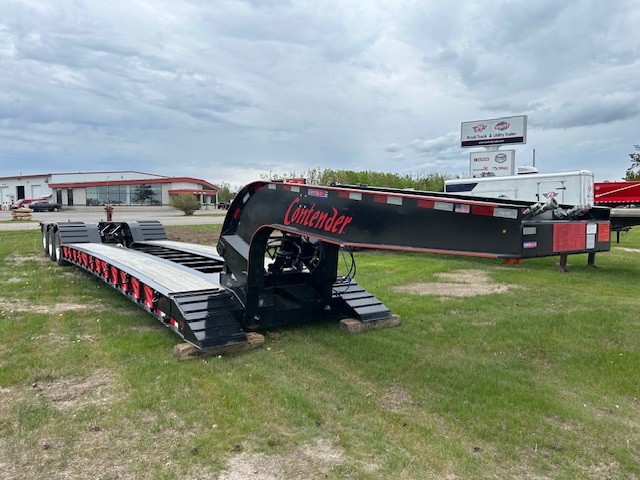

2025 Pitts Lowboy | LB55-22DC
- 55-Ton Detach With A 22″ Loaded Deck Height

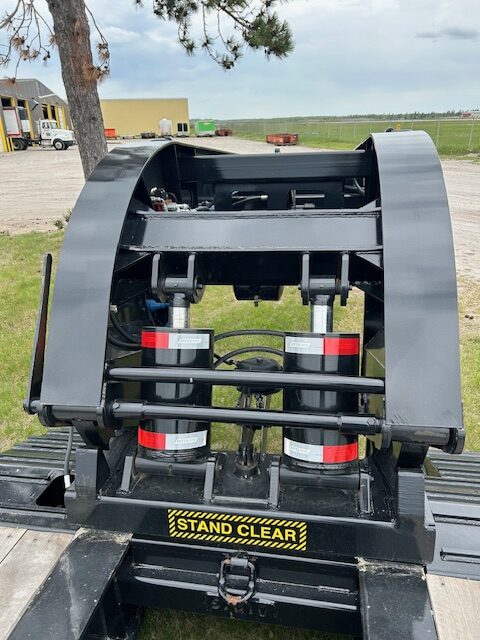

- Hydraulic Detachable Non- Ground Bearing, 4 Position Ride Height Adjustment, Vertical Locking Pin, Hydraulic Support Arm, Auto Diverter Valve
- Loaded Deck Height: 22″ with 6″ Ground Clearance
- Deck Length: 26′
- Center Deck: Open
- Fixed Front Ramps
- 8’6″ Deck Width
- (3) Heavy-Duty Axles, 25,000 Lbs. Nominal Capacity Per Axle (GAWR Determined By Suspension Type, Brakes, Tires And Other Components), Tapered Spindle Axles, Hub-Piloted 10 Long Stud Mount, Outboard Cast Drums
- Unitized Heavy Duty 25,000 Lbs., Air-Ride Suspension With Automatic And Manual Controls, Suspension Override Prevention Straps On All Axles
- 16 1/2″ X 7″, Heavy-Duty Brake Drums, Outboard Mount, Automatic Slack Adjusters, Type 30/30 Parking Brakes On (2) Axles
- 75/70R 22.5 H-Ply Tires
- (12) Steel Disc Wheels 8.25 X 22.5
- 16 Bent D’ Rings
