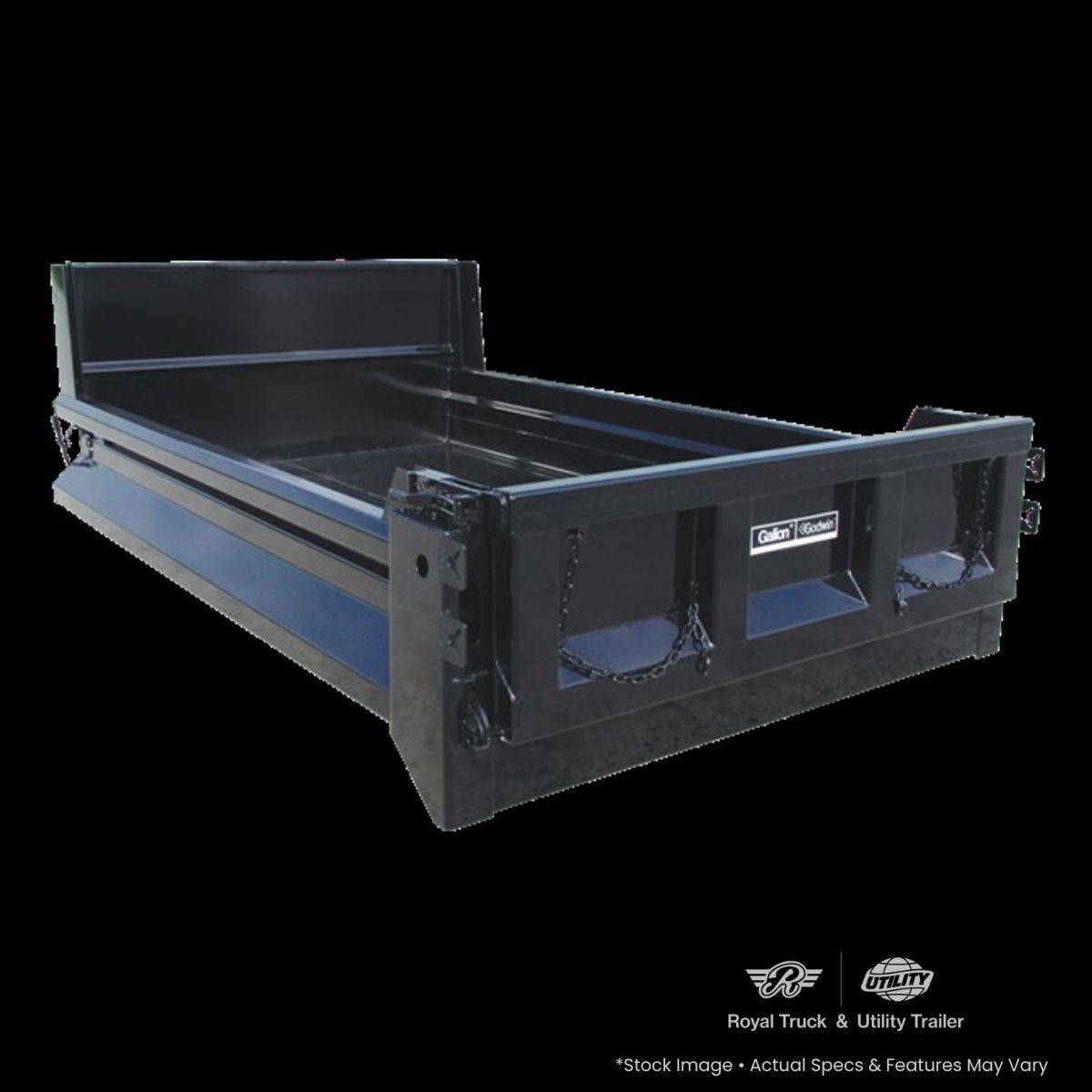

2026 Galion-Godwin Truck Body | PLD
The Galion PLD body is designed for superior service on 12000 – 26000 GVWR cab/chassis’. It features all 10 gauge high tensile steel floors, tailgate, head sheets and single V brace sides. 10″ full depth rear corner posts and boxed “material-shedding” top rails are also standard. The PLD is designed to operate with scissor type conversion hoists.
- General Dimensions: Available With Inside Width Of 84″ And Lengths Of 12′, 14′ And 16′. Features 18″ Sides, 42″ Front And 24″ Gate
- Sides: 10 Gauge High Tensile Steel Sides With Horizontal Pressed V Brace, Material Shedding Boxed Top Rails, Full Depth 10″ Rear Corner Post And 6″ Front And Rear Board Extension Pockets. Drop Sides Do Not Have Pressed V Brace
- Floor: 10 Gauge High Tensile Steel, With 2″ Radius Floor To Side Radius
- Front Bulkhead: 10 Gauge High Tensile Steel Construction With Two Bend Top Flange And Horizontal V Brace
- Tailgate: 10 Gauge High Tensile Steel With Full Perimeter Box Bracing, Two Intermediate Vertical Box Braces, Double Acting With Long Chains And Two Sets Of Banjo Eyes
- Tailgate Hardware: Heavy Duty Cast Quick Release Top Hardware And Cast Overshot Lower Hardware With Manual Release Handle
- Lights: Meets All Requirements Of FMVSS108 With Oval Stop/Tail/Turn Lights Recessed In Rear Post. All Lighting Is Recessed, Shock Mounted, Complete With Factory Wiring Harness
- Understructure: Stacked Design Utilizing 7″ Structural Longitudinals Gusseted To 3″ Structural Channel Crossmembers On 12″ Centers, Lubricated Front And Rear Cross Shaft And Full Width Rear Bolster
- Safety Features: All Complete Galion PLD Bodies Are Shipped With A “Body Up” Warning Light And OSHA Required Back Up Alarm
- Paint: Glossy Black Thermoset Powder Coating On Top Of Thermoset Zinc Powder Coat Primer
Optional Features Include:
- Aluminum Construction
- 304 #4 Stainless Steel Construction
- 304-2B Stainless Steel Construction
- 201-LM2B Stainless Steel Construction
- 201 #4 Stainless Steel Construction
- Coal Door In Gate
- Fold Down Sides
- Sleek Cab Protector
- Integral Cab Protector
- Bolt On Spreader Apron
Call for more information and pricing!
