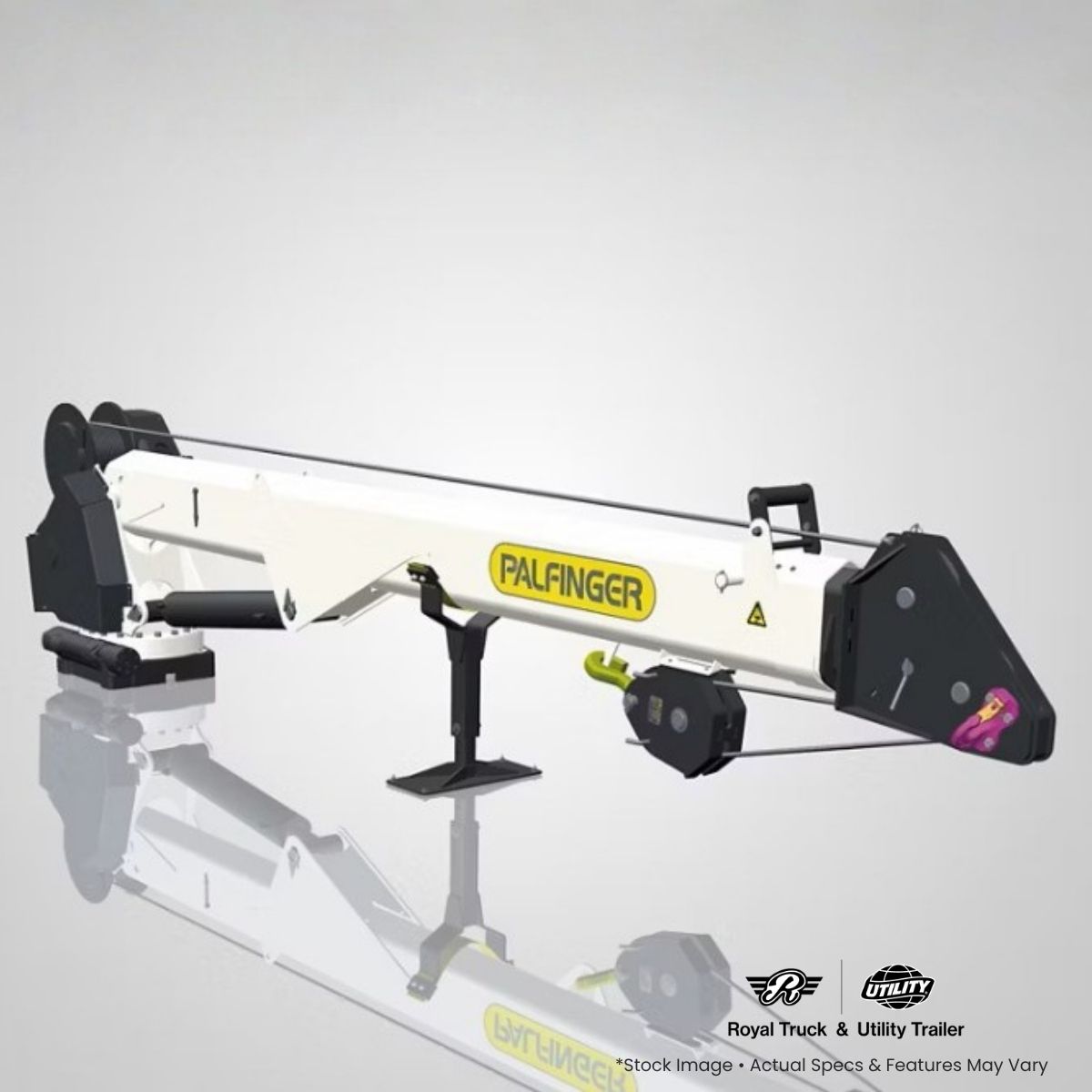

2026 Palfinger | Crane | PSC8029
Take on the toughest jobs with PALFINGER hydraulic service cranes – 8,000-14,000 lb capacity, 29′ reach, and excellent weight-to-lift ratio. The standard multi-function remote and high-speed winch keep you efficient, while options like boom tip hooks and personnel baskets allow you to customize your crane.
Standard Features:
- 8,000lbs Lifting Capacity
- 43,000 ft.-lbs Rated Lifting Capacity With 49,180 ft.-lbs Maximum Lifting Capacity
- (2) Hydraulic Boom Extension
- Planetary Winch Provides Speed And Durability
- Horse Head Low Profile Design With Optional Boom Tip Hook(s) And Lights
- Bracket And Pads Designed To Keep Load Block From Contacting The Boom When Stowed
- Ultra-Low Maintenance High Tensile Strength Self-Centering Single Weld Hexagonal Boom Sections Powered By Internal Extension Cylinders
- Internal Extension Cylinders For 25’ Of Hydraulically Powered Outreach
- All Cylinders Are E-coated And Use A 5 Stage Marine Grade Seal System
- Features A Standard Proportional Wireless Remote Control Unit, Integrated E-Stop Button, Warning Horn, And Manual Valve Activation Capability
- Through The Control Valve, Single Function Proportional Control Of All Hydraulic Functions Is Standard
- Integrated System Prevents Wire Rope Spool Off, Ensuring Three Wraps Remain On Drum
- Intelligent Winch Console With Two-Block Damage Prevention System Is Integrated Into Winch Mounting Platform Eliminating The Need For Boom Tip Apparatus And Cord Reel
Available Options:
- PALFINGER Exclusive 2.5 Ton Capacity Boom Tip Hook
- ELS System Provides Unique Solution To Lower The Hooking Point For The Load Block in Which The Winch Is Used To Lift Load Block In Its Stowed Position
- With The Addition Of A Retractable Cord Reel Bring Power To The Boom Tip To Light Dual Work Lights That Swing Freely While Raising And Lowering The Boom To Illuminate Working Area
- Non-Marring Boom Rest That Supports The Crane While Protecting The Paint Finish
- Support Your Lifting Application Needs With Manual And Hydraulic Outrigger Options
- Paddle-Style Controller Offers The Possibility To Completely Eliminate The Radio Signal When The Cord Is Plugged Into The Receiver
- Remote Options Include Protective Case With Belt Loop, Silicone Cover, And Remote Storage Bracket Mounted In-Cab Or In Crane Compartment
- Pistol-Grip And Push-Button Remote Controls Available
- Personnel Basket With Quick-Connect Setup, 37′ Reach, Collapsible Storage Box, And Lightweight Design Available
Call for more information and pricing!
