2026 Palfinger | Crane / Service Body | PAL Pro 39
The PAL Pro 39 is the ultimate all-steel mechanics body for heavy lifting—available in 9′ and 11′ lengths. Built with A60 galvanneal steel, aluminum doors, and hybrid torsion box design for unmatched durability, payload, and rust protection. Customize to fit your service needs.
Highlights & Optional Features:
- Available is 9′ And 11′ Lengths
- 44″ Tall Compartment Heights
- 14″ Tall One-Handed Tailgate
- Street-Side And / Or Curb-Side Front Compartments Raised To 60″
- Treadplate Compartment Top Overlays
- Optional Fixed or Adjustable Non-Marring Boom Support E-Coated Black
- Line-X Ultra Interior Compartment Coating For Greater Protection
- Double Panel Doors With Internal C-Channel Stiffeners, Adhered With Structural Adhesive
- PALFINGER’s 12 Step Electrophoretic Deposition Dip Process Cleans The Body And Applies Primer To The Metal Surfaces, Ensuring Complete Coverage And Automotive Grade Corrosion Protection
- Unique Automotive Adhesive Bonded Two-Piece Doors, Hinges, And Compartment Divider Trays Are Now All In Aluminum
- Reinforced Raised Compartment Comes With Our Engineered Structural Gussets To Prevent Against Body Cracking In The Door Corners
- Hybrid Torsion Box Designed For Crane Applications And Utilizing 12GA A-60 Galvanneal Steel Eliminates Truck Frame Twist And Side Pack Deflection
- Tubular 3”x 5” Structural Steel Cross-Members Interlace The Torsion Box To Support Compartment Loads
- Integrated Outrigger Tube Reduces Stress On Chassis Frame By Transferring The Crane Load Directly To The Ground
- Rear Shear Steel Plates Prevent Lateral Body Shift On Chassis, Providing Additional Support For Crane Loads
- 2” I.D. Integrated Hitch Receiver Tube, Attached Directly To Body Structure Rated For 16,000lbs Towing Capacity
- Boom Rest, Welder, Compressor, EnPak, Air-n-Arc And AirPak Mounts Are Available From The Factory To Eliminate The Need To Drill Holes In The Body

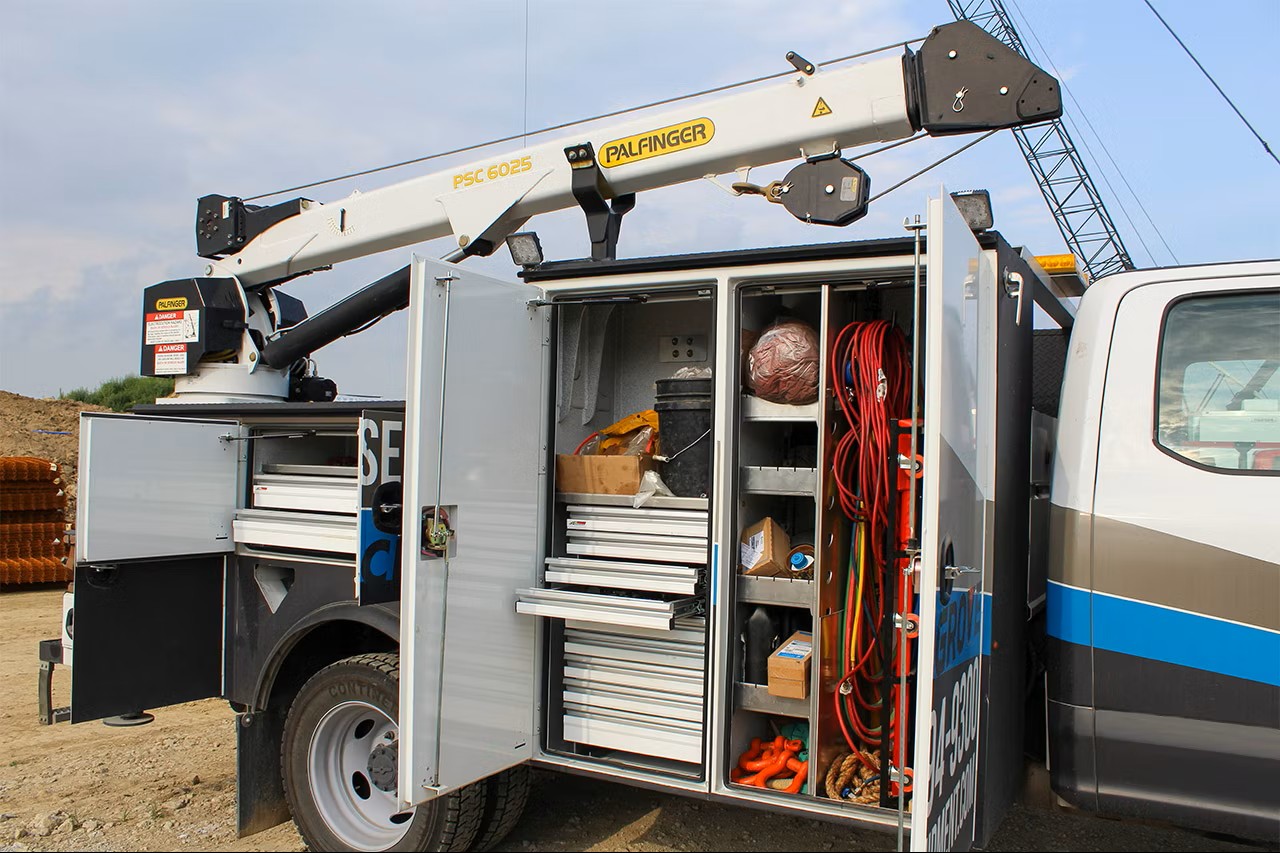

- A True Mechanics Workbench, Featuring 12” Or 21” Work Bench Bumpers, Receiver Hitch, 1/4” Steel Top Plate And Thru Compartment For Additional Storage
- Headache Rack Light Bar Bracket With A Punched Screen Prevents Cargo Area Contents From Making Contact With The Rear Window Of The Cab – Saving You From Costly Rear Window Repairs & Cleanup
- Ergonomically Designed Handrail Option, With A Stable Surface To Grip, For Your Added Security Against Tripping Or Slipping Hazards
- Cranes Installed At Factory Rated Up To 14,000lbs Capacity And 86,000 Ft-Lbs Lifting Capacity
- Boom Extensions Available Up To 29′
- Personnel Basket With Quick-Connect Setup, 37′ Reach, Collapsible Storage Box, And Lightweight Design Available
- Hydraulic Deck-Mounted Rotary Screw Air Compressor That Deliver 45 CFM At 150 PSI With 100% Duty Cycle Available
Call for more information and pricing!
