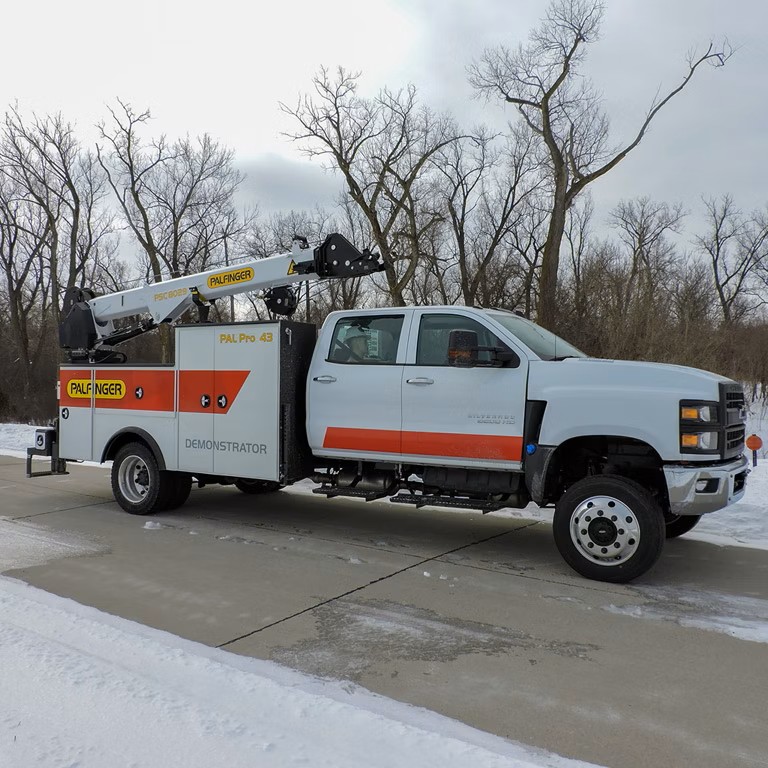

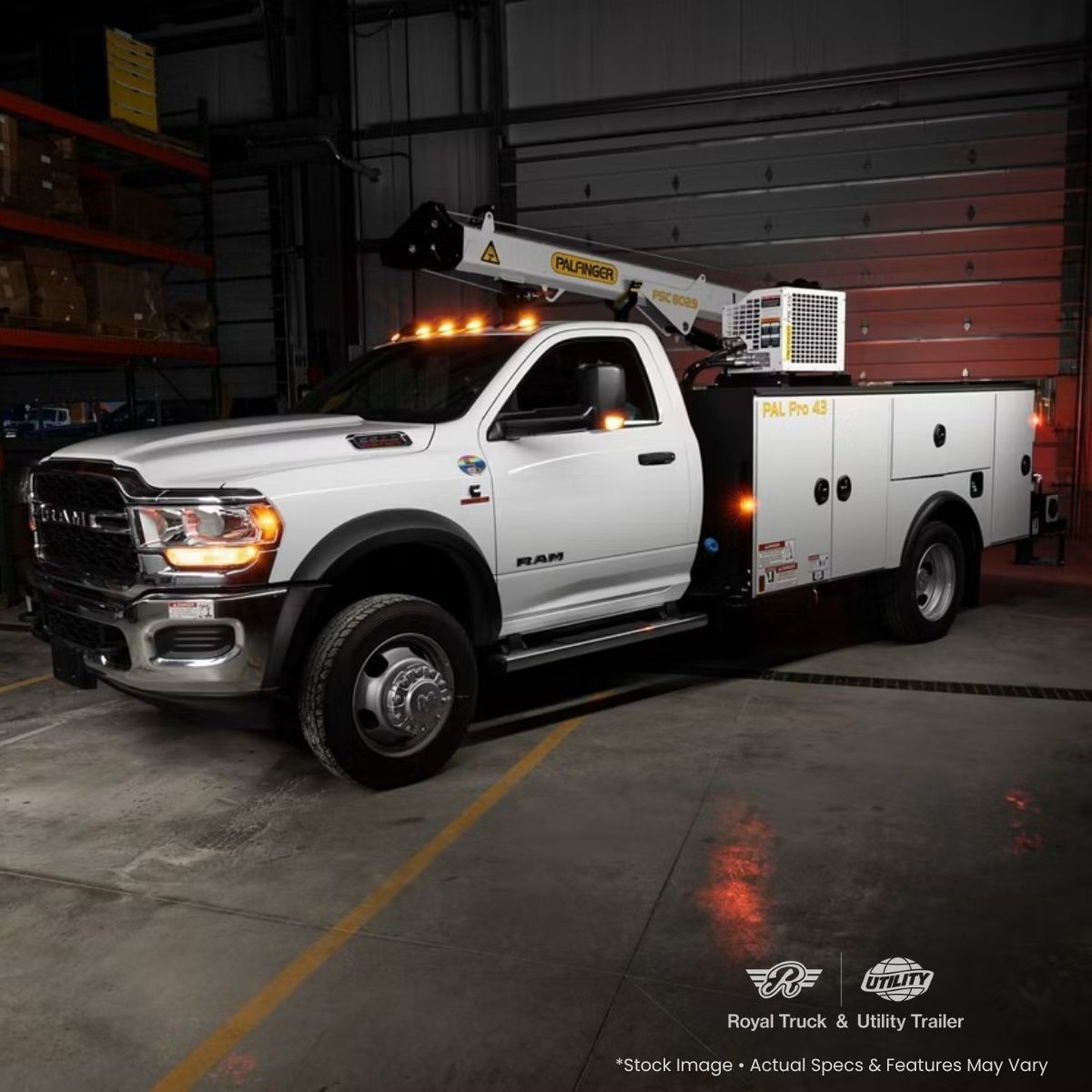

2026 Palfinger | Crane / Service Body | PAL Pro 43
The PAL Pro 43 is the ultimate all-steel mechanics body for heavy lifting. Built for 8,000 lb service cranes with 43,000 ft-lb capacity, it features 12-gauge A60 galvanneal steel, a hybrid torsion box to prevent frame twist, and industry-leading rust protection. Built tough for big jobs.
Highlights & Optional Features:
- Length: 11′
- 44″ Tall Compartment Heights

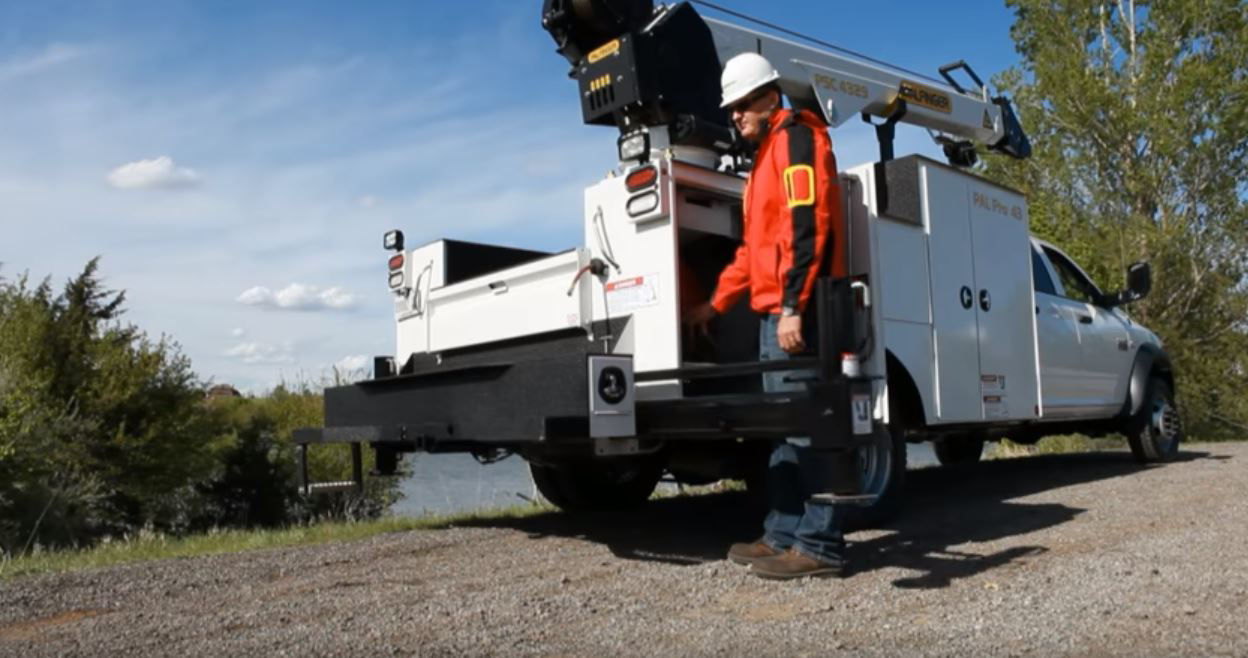

- 14″ Tall One-Handed Tailgate
- Street-Side And / Or Curb-Side Front Compartments Raised To 60″
- Street-Side All Compartments Raised To 60″
- Treadplate Compartment Top Overlays
- Optional Fixed or Adjustable Non-Marring Boom Support E-Coated Black
- Line-X Ultra Interior Compartment Coating For Greater Protection
- Double Panel Doors With Internal C-Channel Stiffeners, Adhered With Structural Adhesive
- PALFINGER’s 12 Step Electrophoretic Deposition Dip Process Cleans The Body And Applies Primer To The Metal Surfaces, Ensuring Complete Coverage And Automotive Grade Corrosion Protection
- Every Raised Compartment Comes With PALFINGER’s Engineered Gussets For Increased Protection Against The Body Cracking In The Door Corner
- A True Mechanics Workbench, Featuring A 21” Work Bench Bumper, Receiver Hitch, 5/16” Steel Top Plate And Thru Compartment For Additional Storage
- Hybrid Torsion Box Designed For Crane Applications And Utilizing 12GA A-60 Galvanneal Steel Eliminates Truck Frame Twist And Side Pack Deflection
- Tubular 3”x 5” Structural Steel Cross-Members Interlace The Torsion Box To Support Compartment Loads
- Integrated Outrigger Tube Reduces Stress On Chassis Frame By Transferring The Crane Load Directly To The Ground
- Rear Shear Steel Plates Prevent Lateral Body Shift On Chassis, Providing Additional Support For Crane Loads
- 2” I.D. Integrated Hitch Receiver Tube, Attached Directly To Body Structure Rated For 16,000lbs Towing Capacity
- Boom Rest, Welder, Compressor, EnPak, Air-n-Arc And AirPak Mounts Are Available From The Factory To Eliminate The Need To Drill Holes In The Body
- Steel Shelves Or Divider Trays With 250lb-Rated Capacity Offer Variable Storage Options For Each Compartment
- Headache Rack Light Bar Bracket With A Punched Screen Prevents Cargo Area Contents From Making Contact With The Rear Window Of The Cab – Saving You From Costly Rear Window Repairs & Cleanup
- Ergonomically Designed Handrail Option, With A Stable Surface To Grip, For Your Added Security Against Tripping Or Slipping Hazards
- Cranes Installed At Factory Rated Up To 14,000lbs Capacity And 86,000 Ft-Lbs Lifting Capacity
- Boom Extensions Available Up To 29′
- Personnel Basket With Quick-Connect Setup, 37′ Reach, Collapsible Storage Box, And Lightweight Design Available
- Hydraulic Deck-Mounted Rotary Screw Air Compressor That Deliver 45 CFM At 150 PSI With 100% Duty Cycle Available
Call for more information and pricing!
