Description

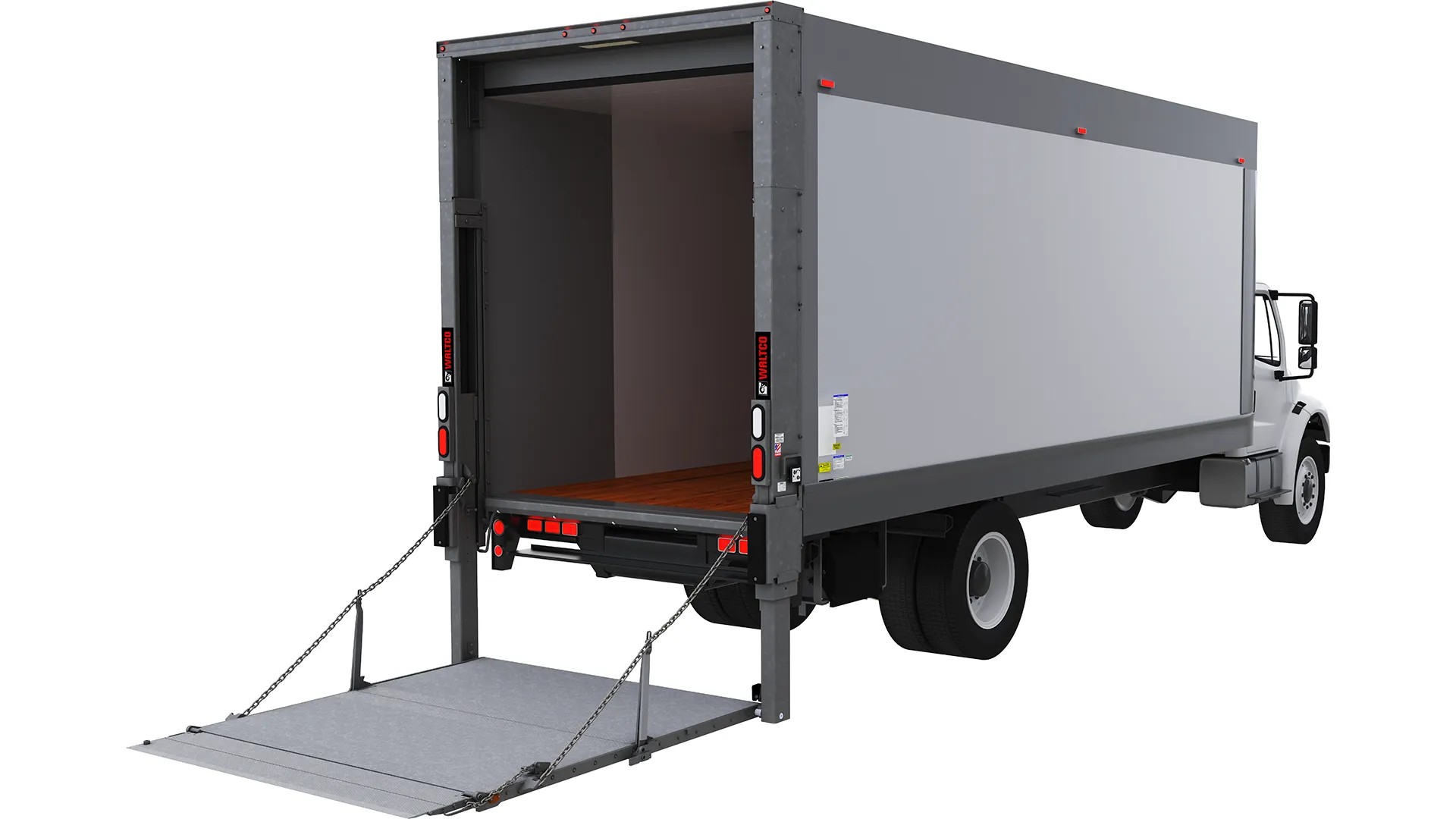

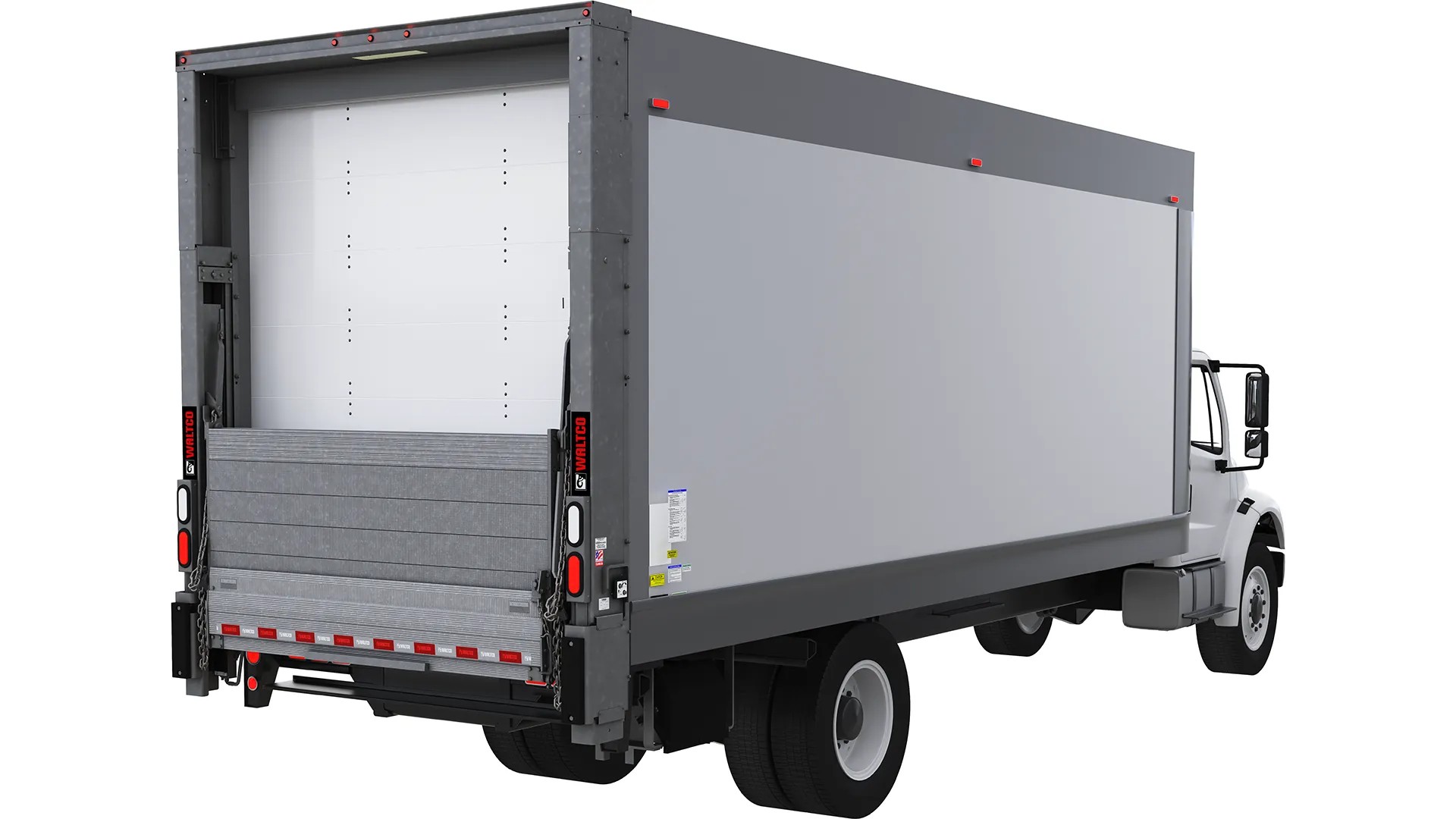

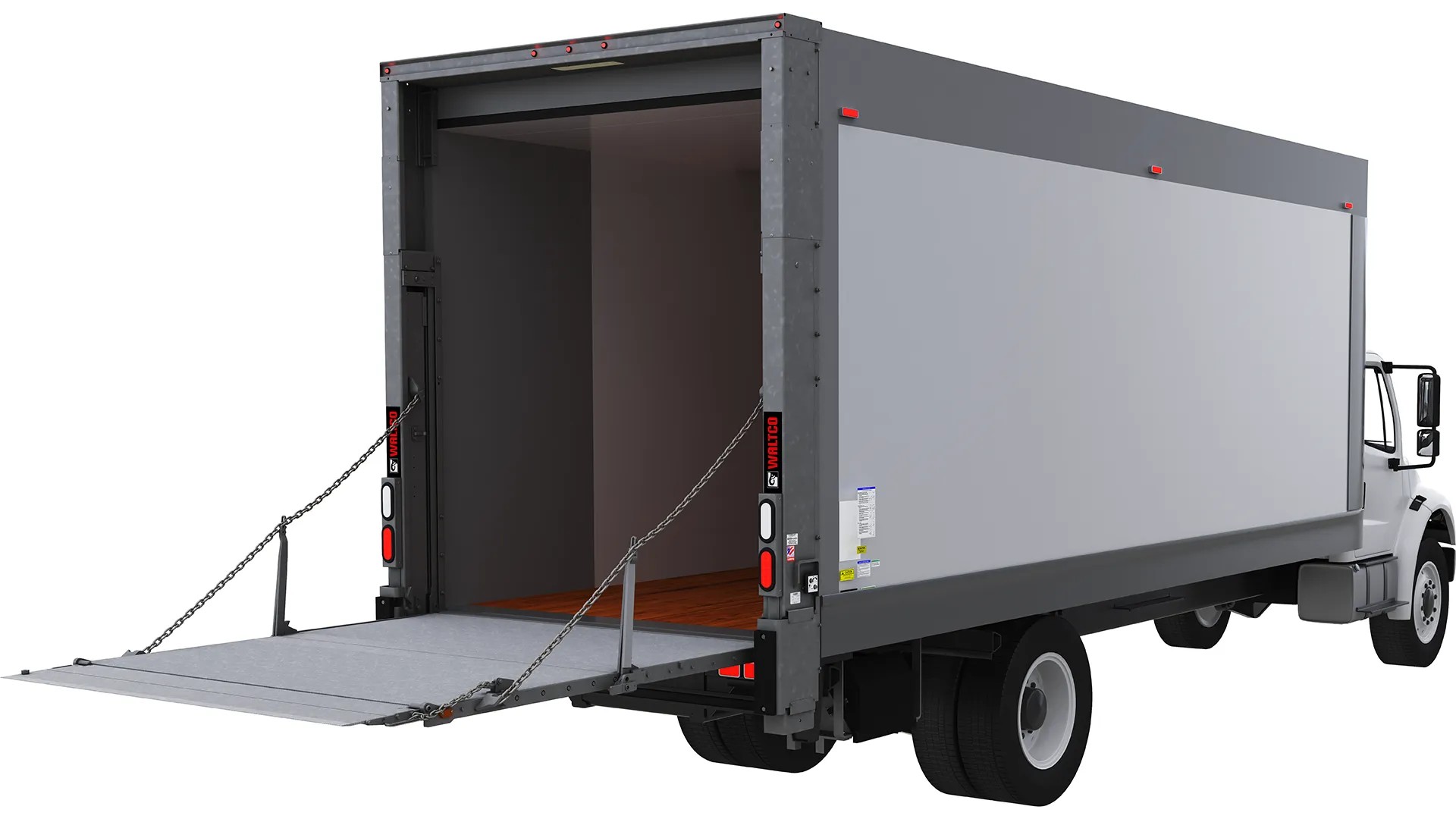

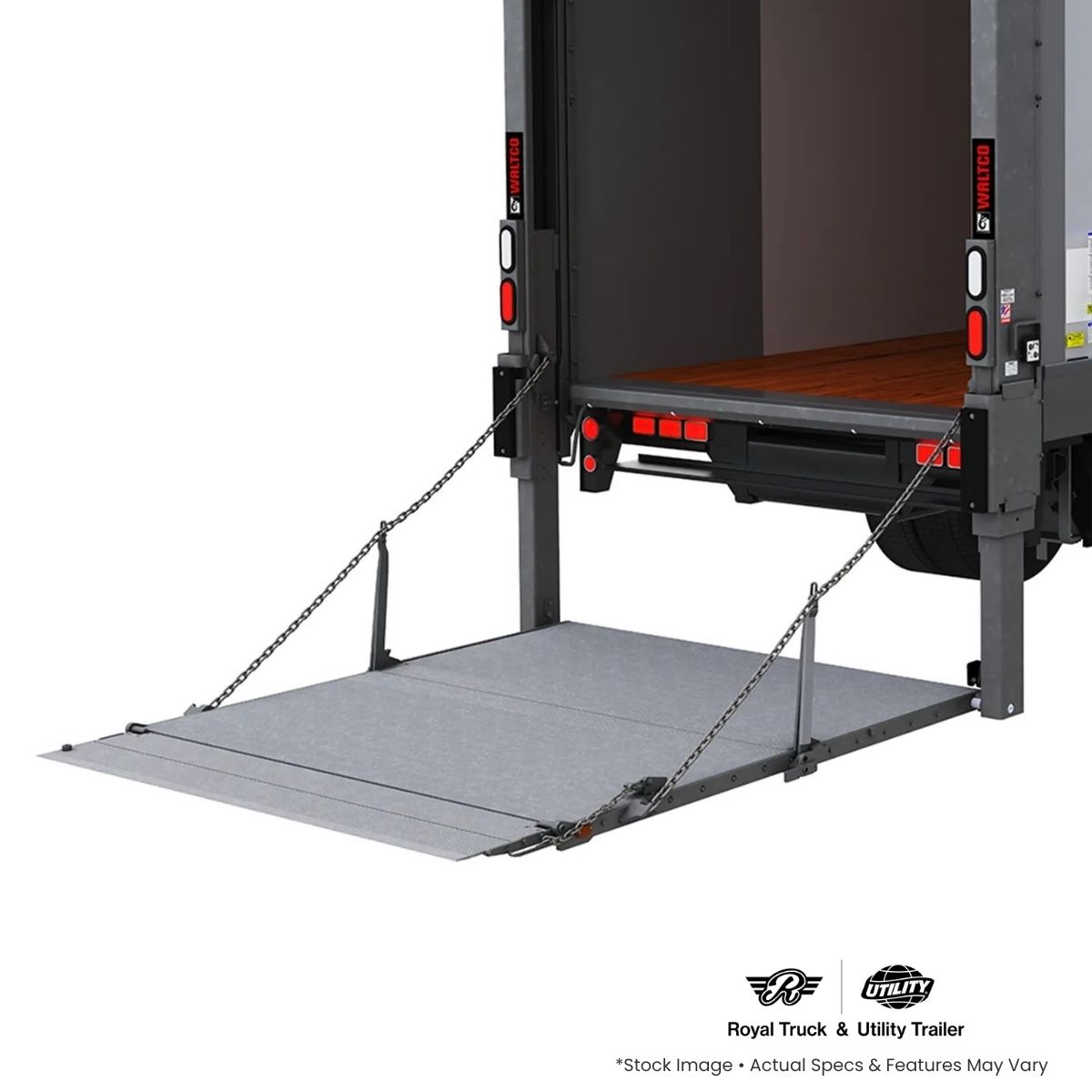

2026 Waltco | Liftgate | WDV
Its innovative design ensures ease of operation and low maintenance requirements. It features column style rails that enable its runners to move the platform via vertical hydraulic cylinders for ultimate strength and efficiency. The platform is conveniently stored over the rear door during travel and can be lowered out of the way for easy dock loading. The market’s premium heavy duty railgate offering high performance. Available in 3,500 lb., 4,500 lb., 5,500 lb. and 6,600 lb. lifting capacities.
Standard Features
- Lifting Capacity: 3500#, 4500#, 5500#, or 6600#
- Platform Width: 82″ or 88″
- Platform Depth: From 60″, 72″, or 84″
- Bed Height: Minimum 40″ to Maximum 57″
- Knurled Aluminum Construction
- 12″ Fixed Ramp Available for 60″ and 72″ Models
- 16″ Folding Ramp Available for All Models
- Flashing Platform Warning Lights
- Knurled Aluminum Platform Surface
- Hydraulic Power Open And Close
- Power Down / Gravity Down
- Series Hydraulics
- Dock-Loading Capability With Heavy-Duty Dock Bumpers
- Mechanical Travel Latch
- Dual Pump And Motoer for 5500# and 6600# Models
- Free-Floating Design Slide Pads With Lifetime Warranty
- Dedicated Ground Wire
- Pressure Gauge
- Galvanized Steel Frame
- Aluminum Platform
Optional Features
- Cart Stops
- Porch Light With Timer
- Cab Shut-Off Switch
- Battery Charging Kit
- Dual Pump And Motoer for 3500# and 4500# Models
- Solar Power Kit
- Chain Sleeves
- Auxiliary Switch, Pump Mounted
- Handheld Remote
- Header Kit
Call for more information and pricing!
