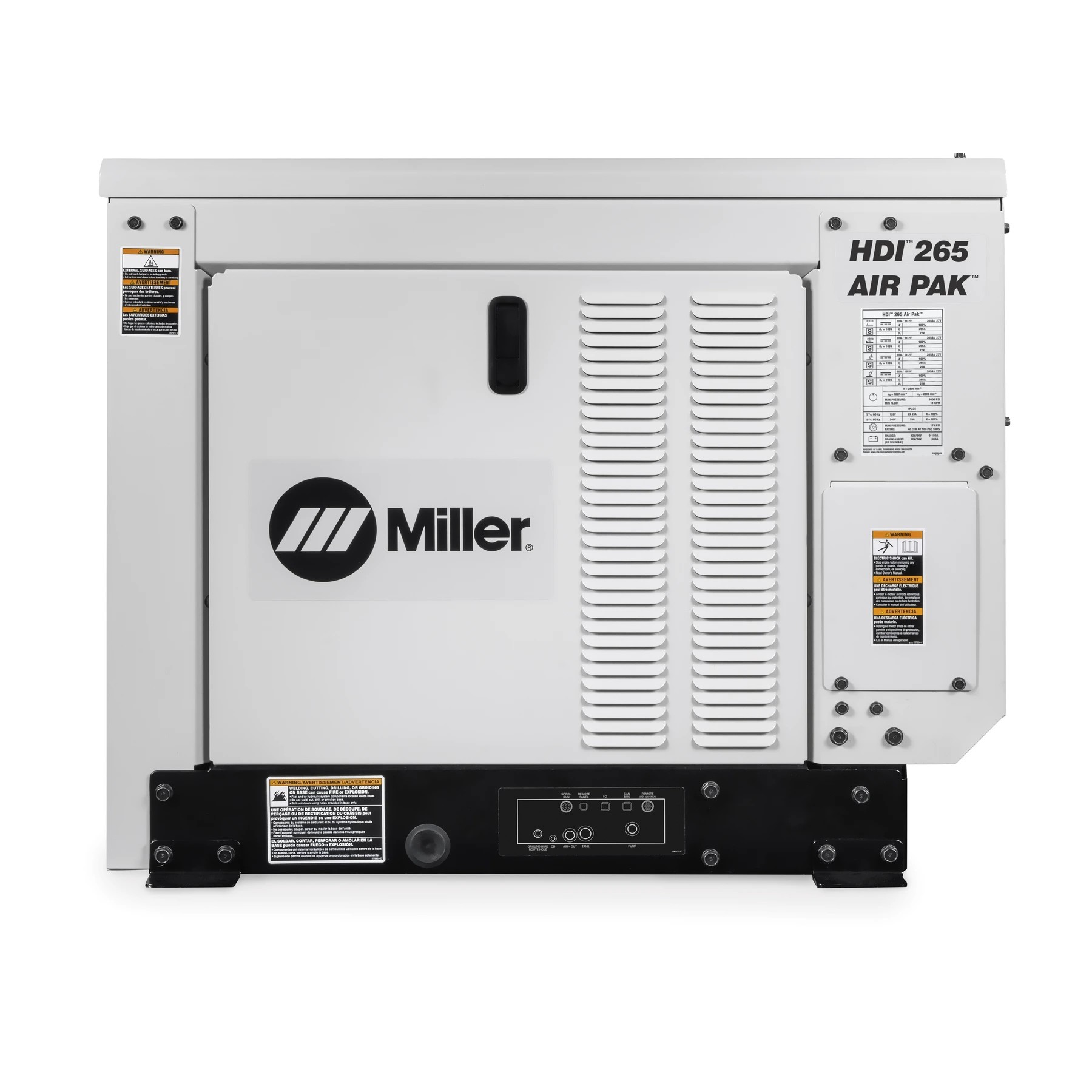

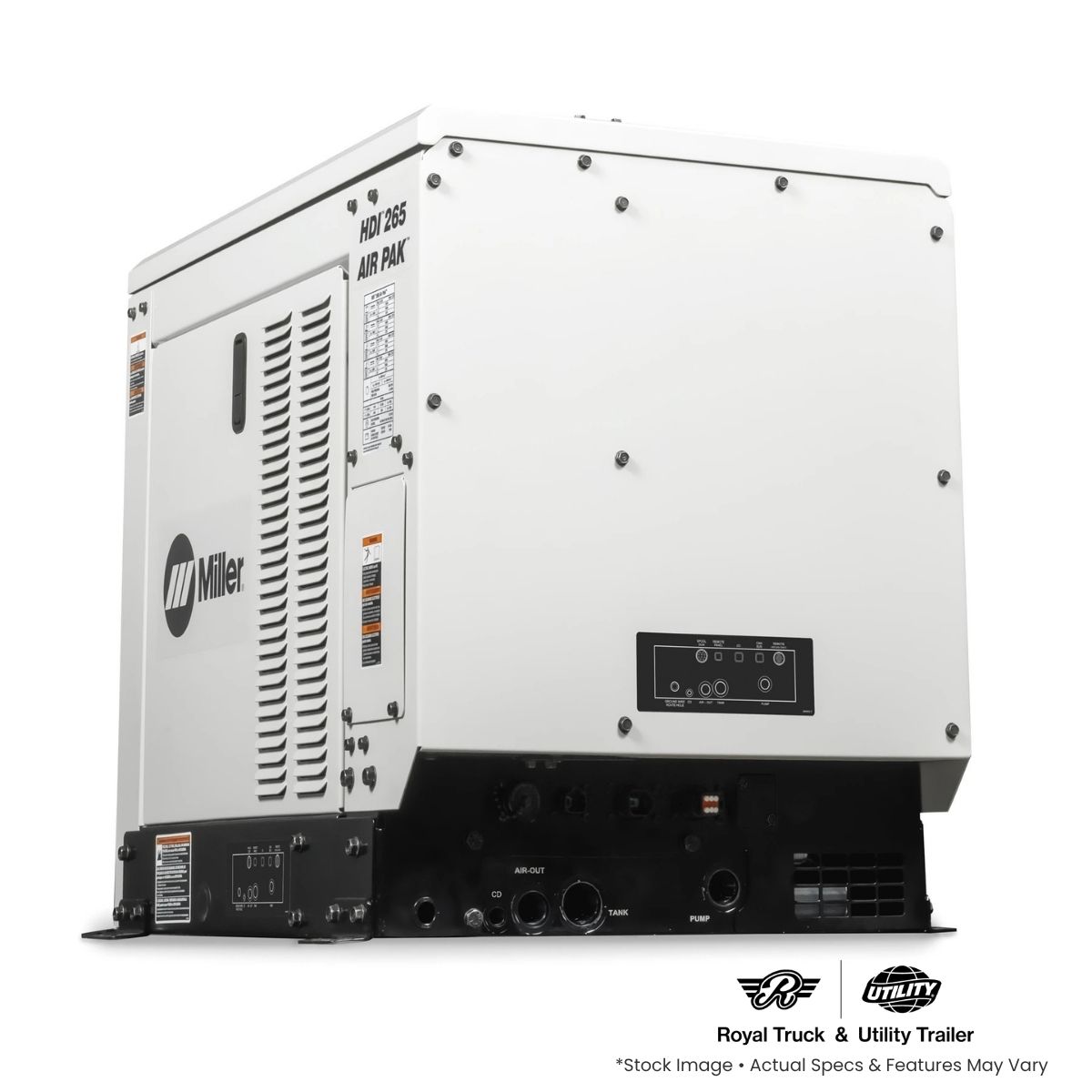

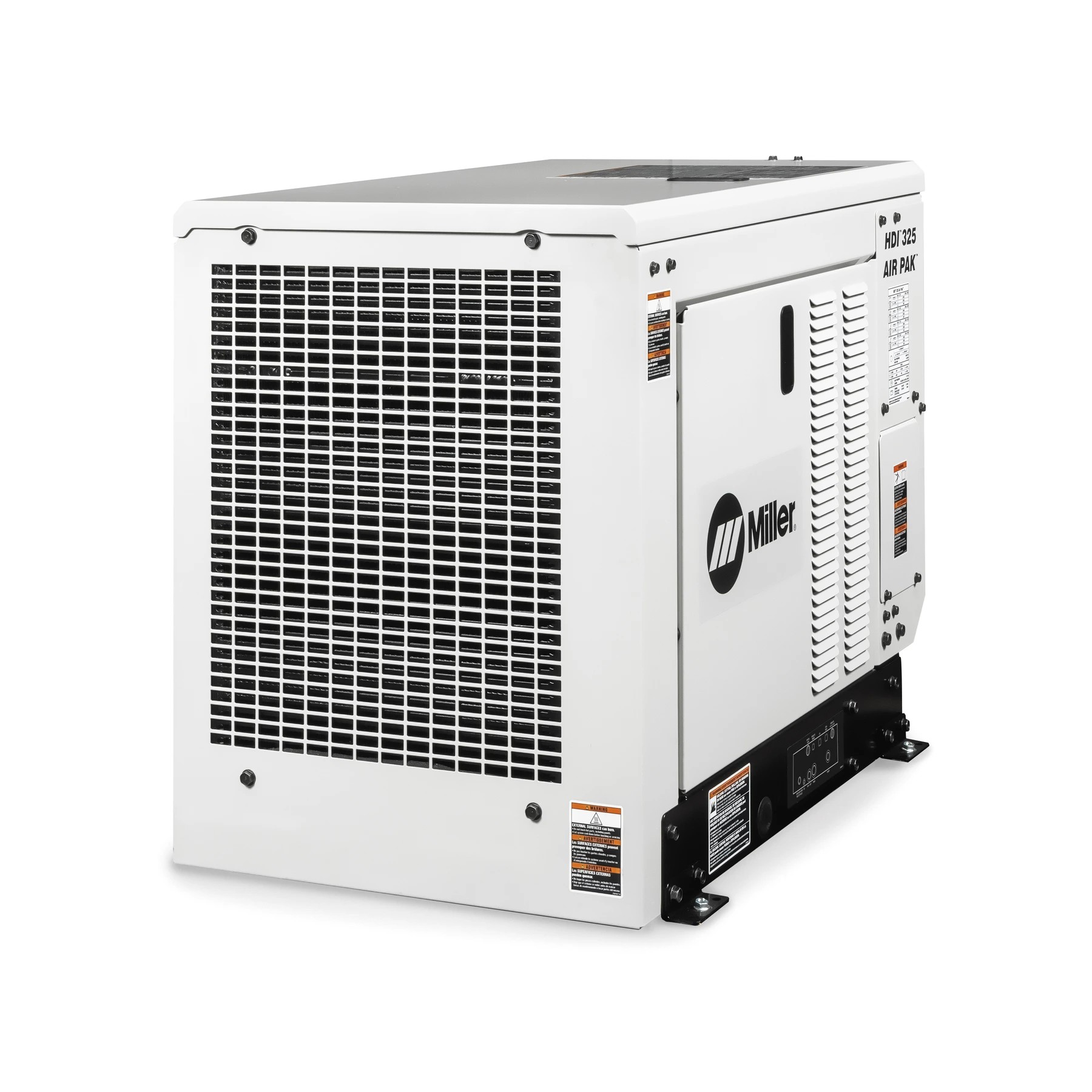

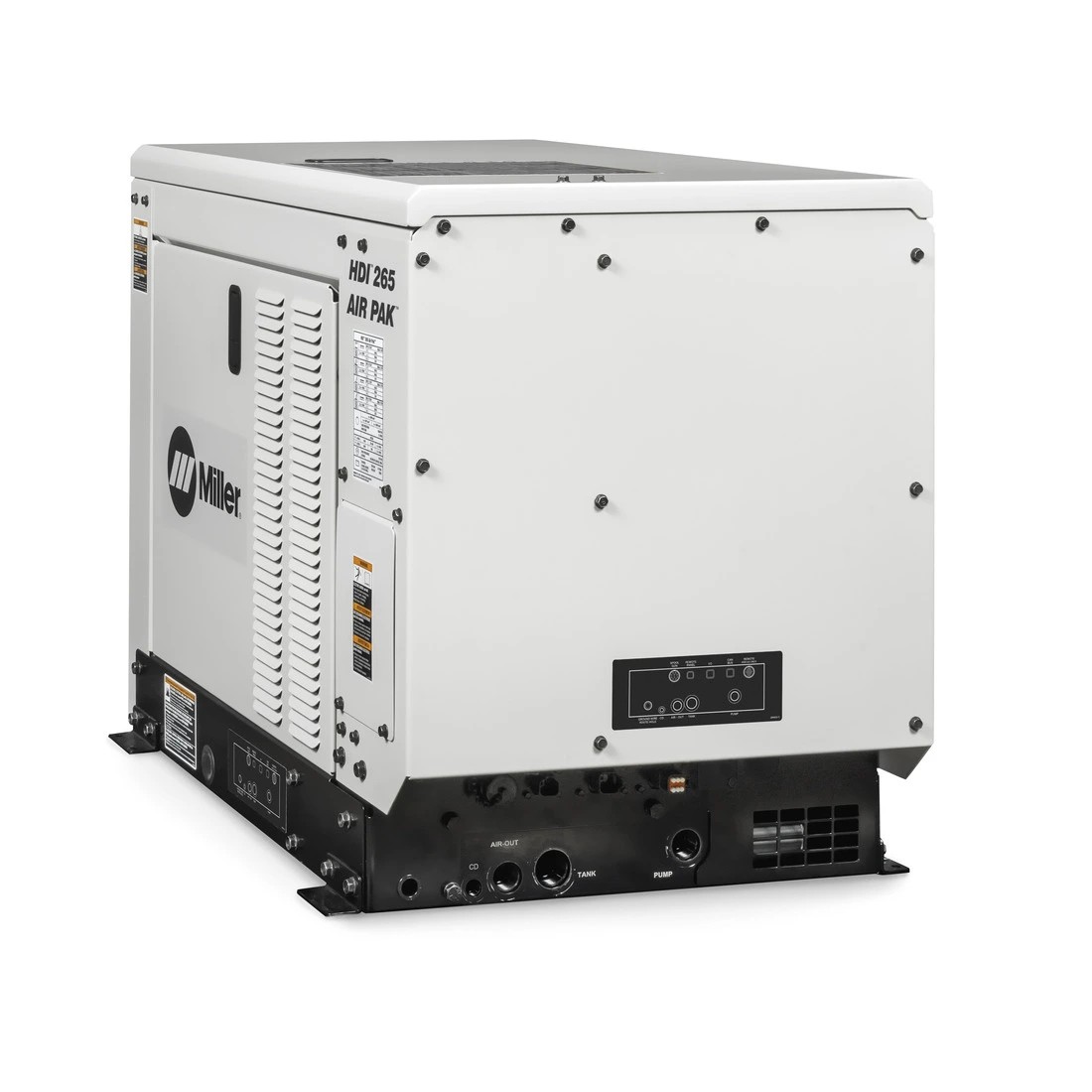

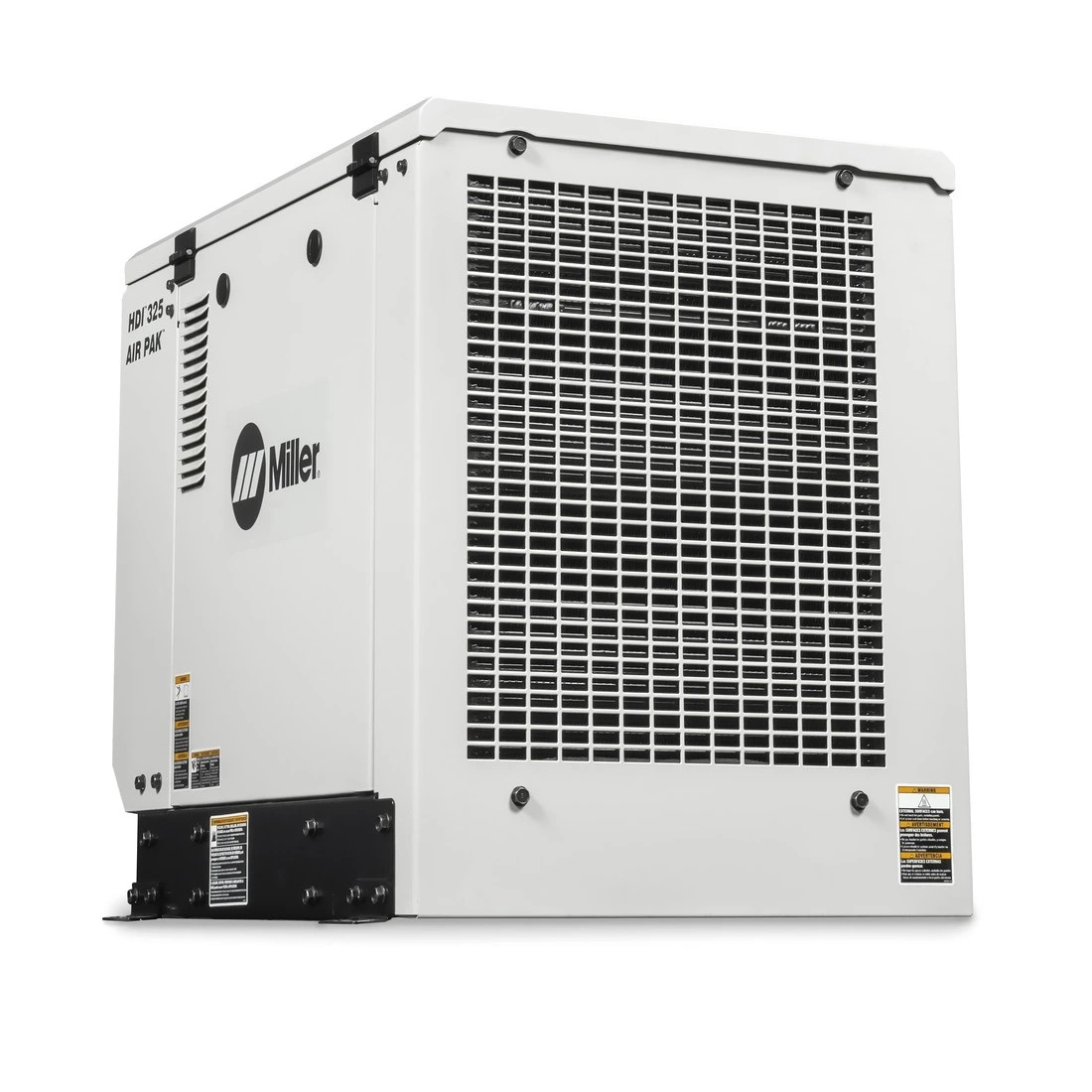

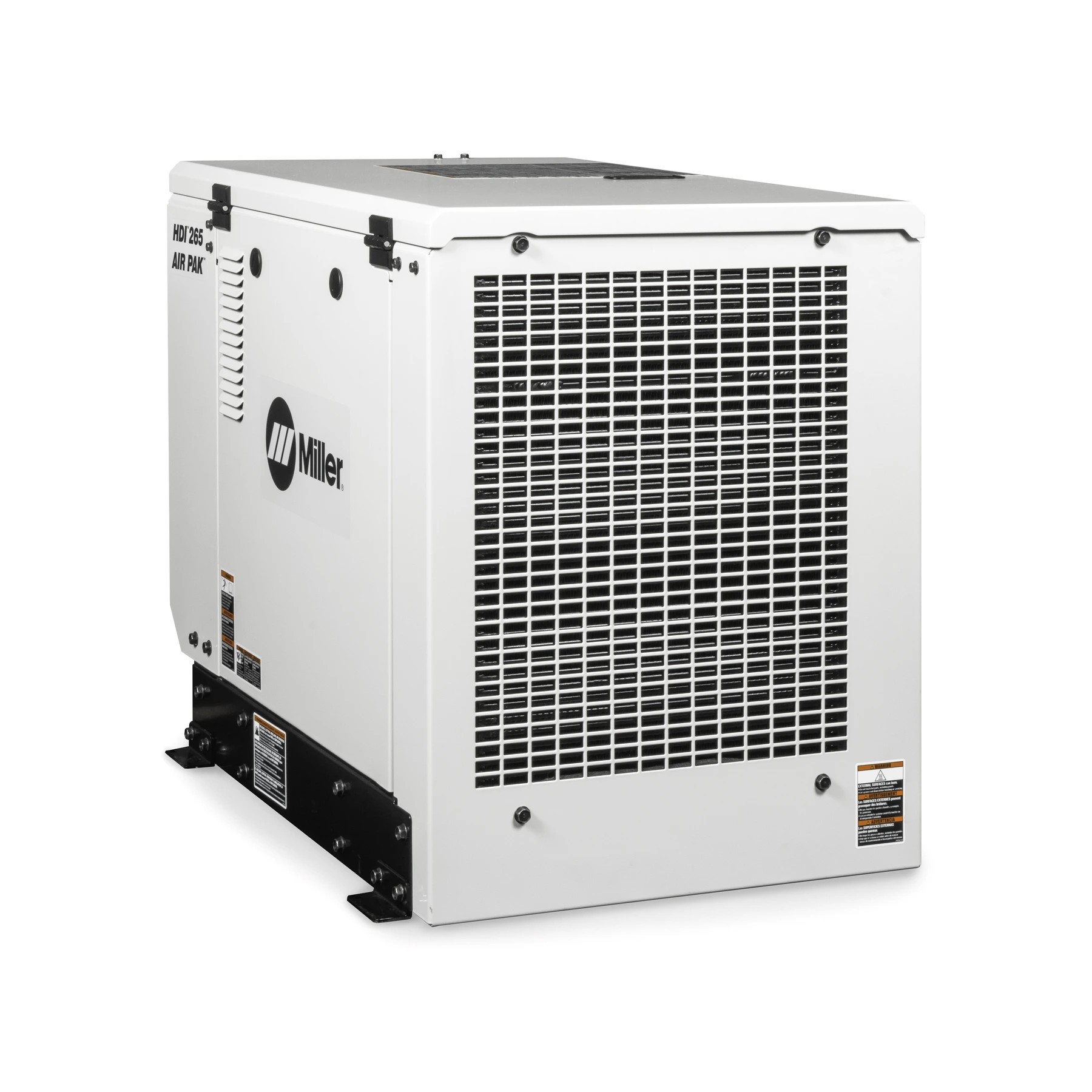

Miller Electric | EnPak | HDI Air Pak
MILLER® HDI™ AIR PAK™ SERIES: NEW HYDRAULICALLY DRIVEN ALL-IN-ONE POWER SYSTEMS. RAISE YOUR STANDARDS

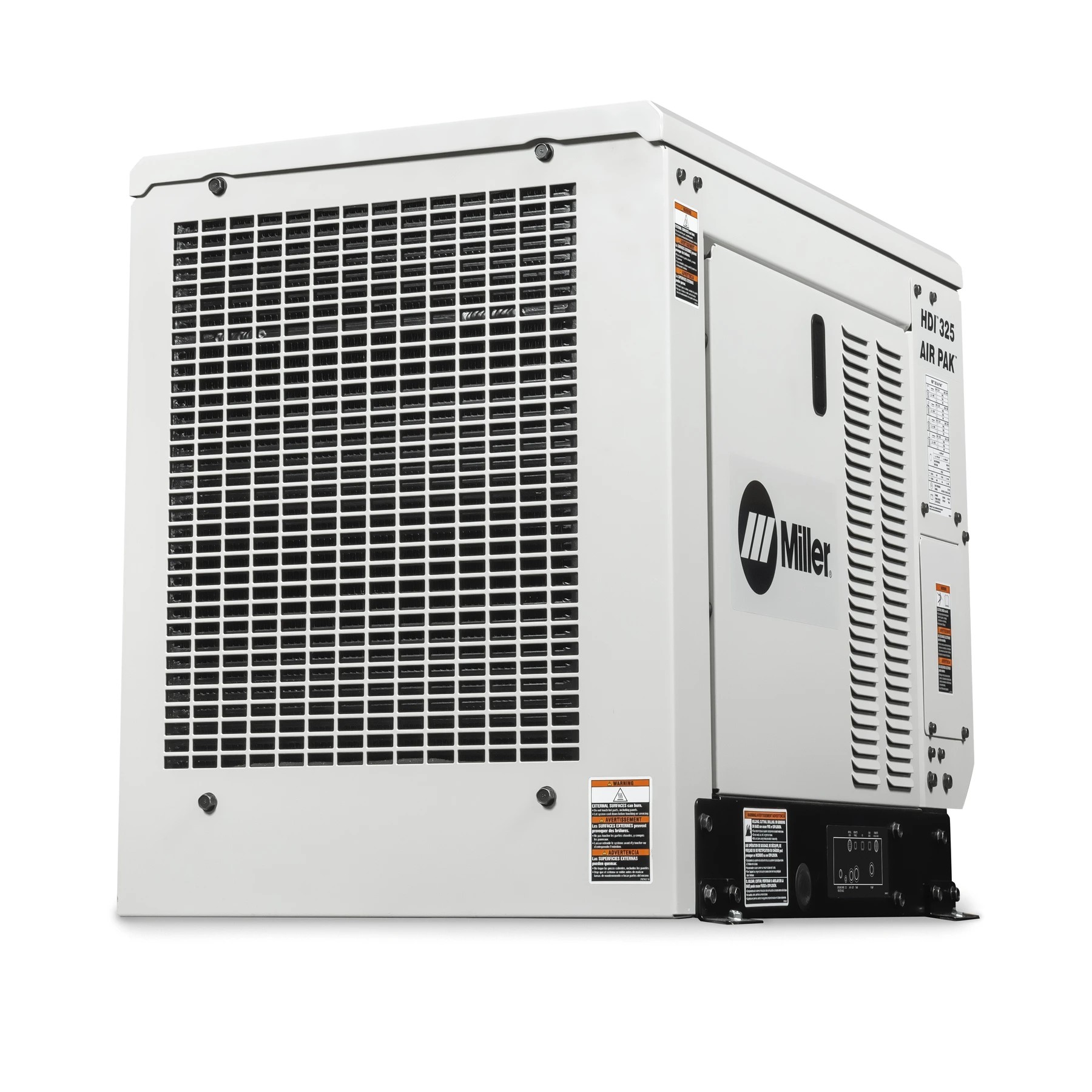

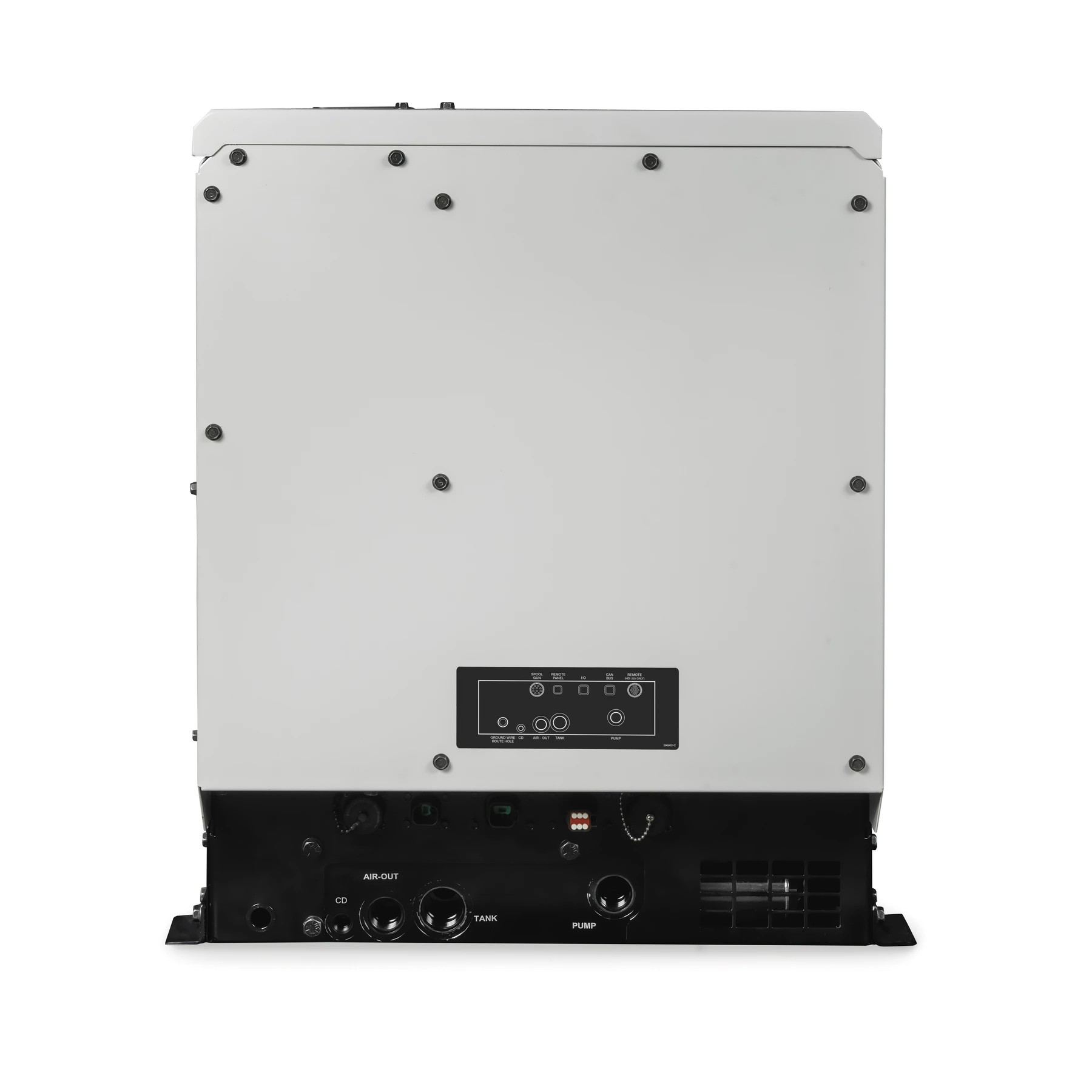

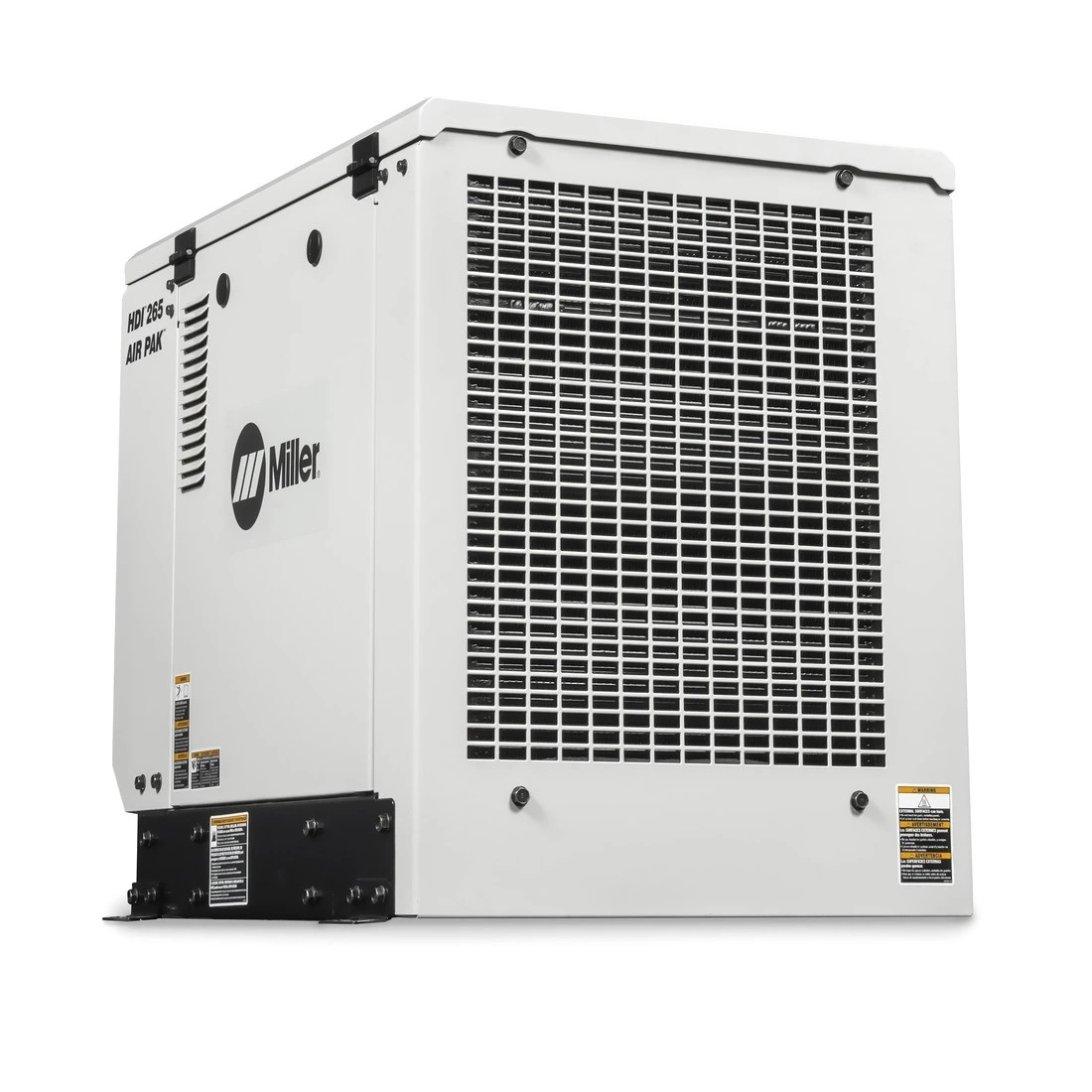

Powerful hydraulically driven all-in-one unit designed for the rugged work truck industry with air compressor, battery charge/crank assist, auxiliary power, and multiprocess welding. The HDI Air Pak is designed with industry-leading technologies to provide the support and reliability you need on the job, while reducing payload for increased capabilities.
Features:
- Available Models Come With Welder, Air Compressor, Generator Power, Battery Charge / Crank Assist, Hydraulic Cooling Only Mode, And Integrated Compressor Heater
- Smaller And Lighter: Up To 400 Pounds Lighter And 54 Percent Smaller Footprint Over An Engine-Driven Welder And Standalone Compressor
- Air Compressor: Rotary-Screw Compressor With 40 cfm (265 Model) Or 60 cfm (325 Model) Can Power Virtually Any Air Tool, Including Most One-inch Impact Wrenches. The Rotary-Screw Compressor Reliably Provides Air On Demand. Compressor Oil Heater Included

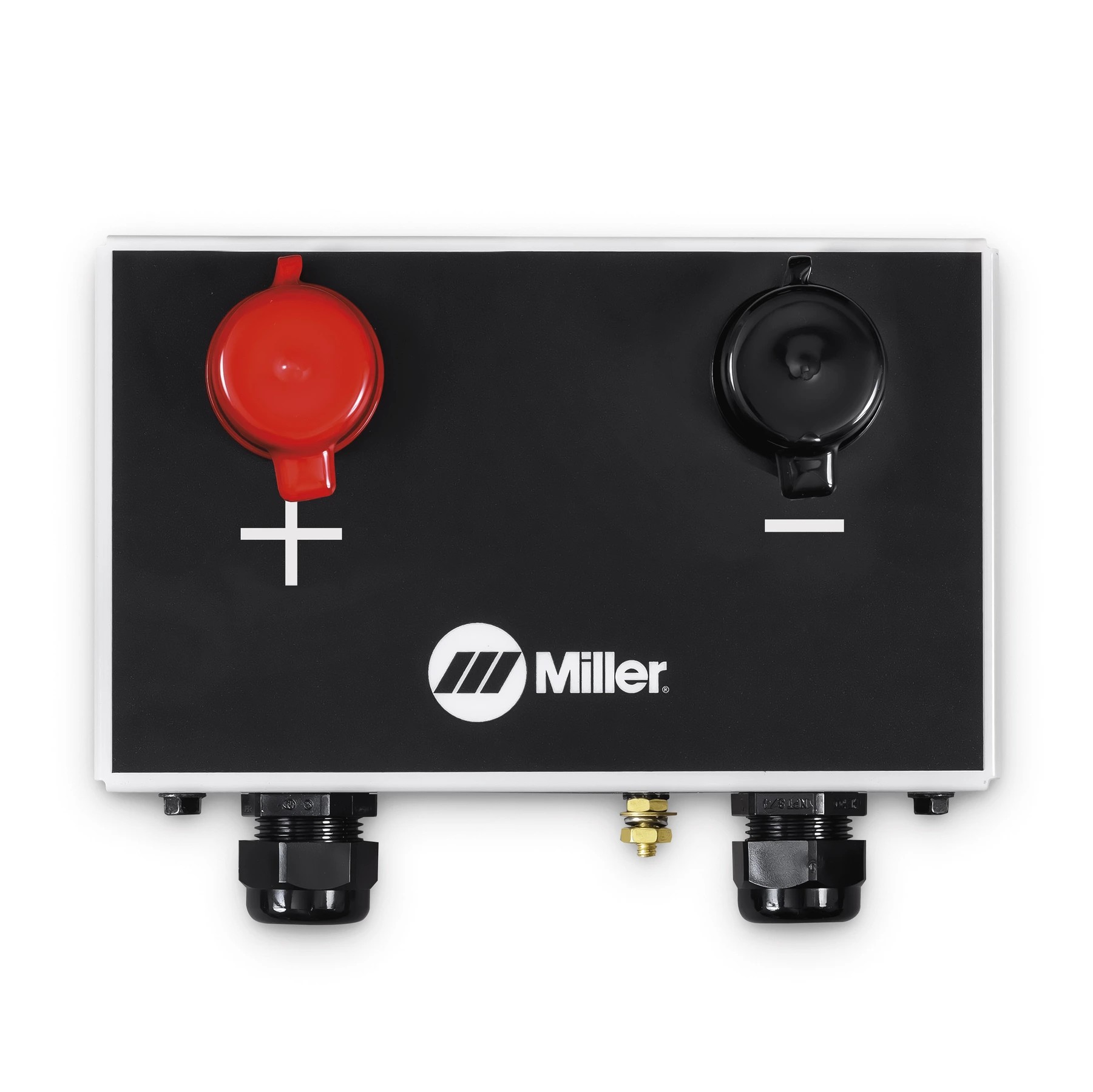

- Battery Charge / Crank Assist: Produces Up To 150 Amps Of DC Current To Quickly Charge 12- And 24-Volt Batteries. It Can Provide Jobsite Equipment With Weak Batteries Up To 300 Amps Of Crank Assist

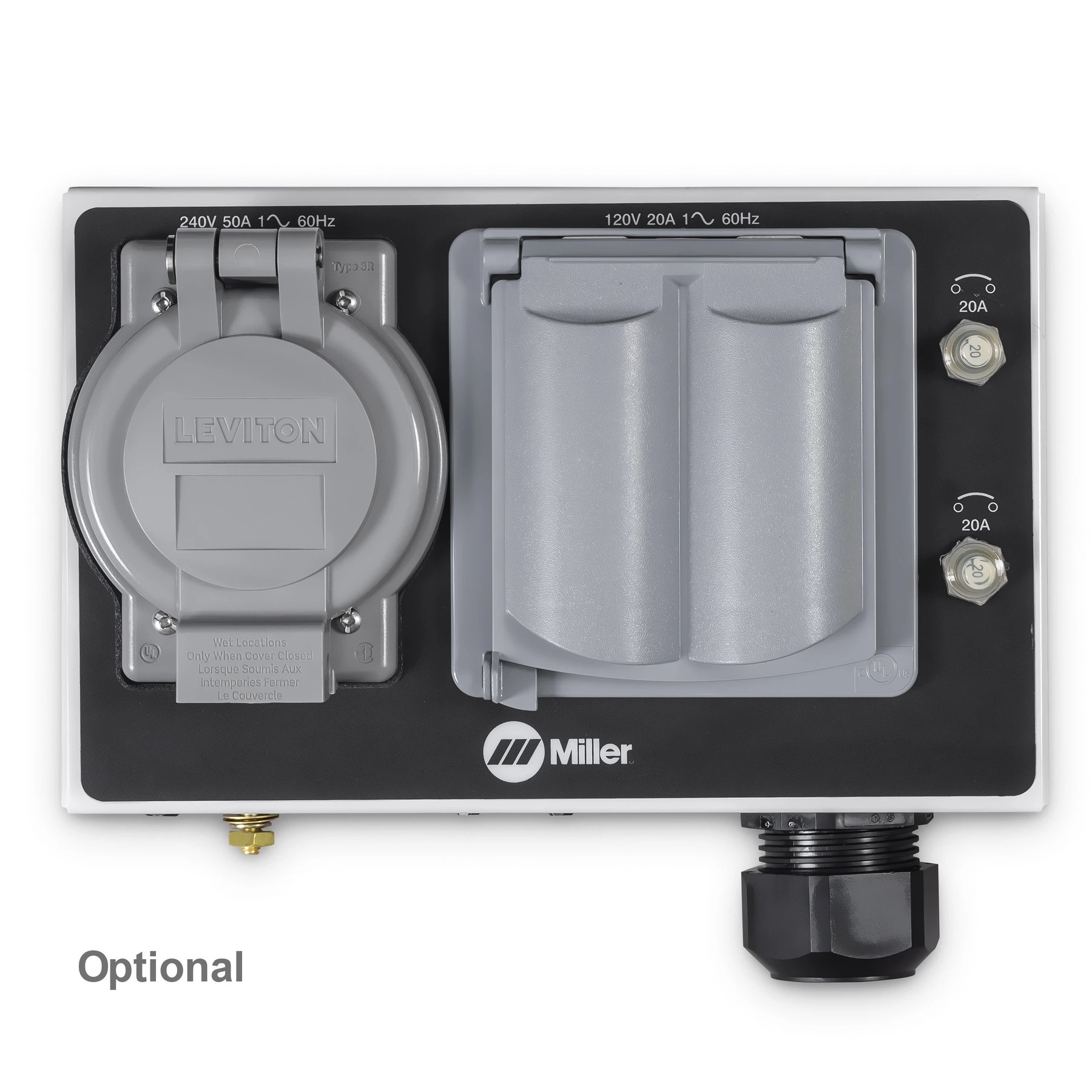

- Generator Power: 7,000-Watt Generator That Can Handle Most Jobsite Electrical Needs – Electrical Tools, Lights, And More. The Optional Auxiliary Power Panel Provides Two 120-Volt GFCI-protected Duplex Receptacles And One 120 / 240-Volt Receptacle With 60 Hz Current
- Integrated Multiprocess Welding: The HDI Air Pak Provides Multiprocess Weld Capabilities With 265 Amps (265 Model) Or 325 Amps (325 Model) Of Output (100 Percent Duty Cycle), So Technicians Are Prepared For Each Welding Job They Encounter In The Field
- Auto-Set™ Technology: Offers Predefined Weld Settings To Increase Ease Of Use And Ensure That The Job Is Done Right For Operators Of All Skill Levels
- Direct Spool Gun Connection: Make It Easy To Weld Aluminum. Expand The Types Of Jobs You Can Take On. Adapters Are No Longer Required With The Integrated 10-Pin Connection. Optimized For Spoolmate™ And Spoolmatic® Spool Guns
- 14-Pin Receptacle: Provides A Quick, Direct Connection To Miller® Wire Feeders. Capable Of Remote Voltage Control
- Hydraulic Cooling Only Mode: When Output Capabilities Are Not Needed, Disable The Drive Motor Of The HDI Air Pak To Keep The Cooling System Operating And Cool Hydraulic Fluid When Only Other Auxiliary Hydraulic Equipment Is Needed.
- Simple Setup: Save Time With A Single, Easy-To-Use Interface For Air Compressor, Battery Charge / Crank Assist And Weld Parameter Settings

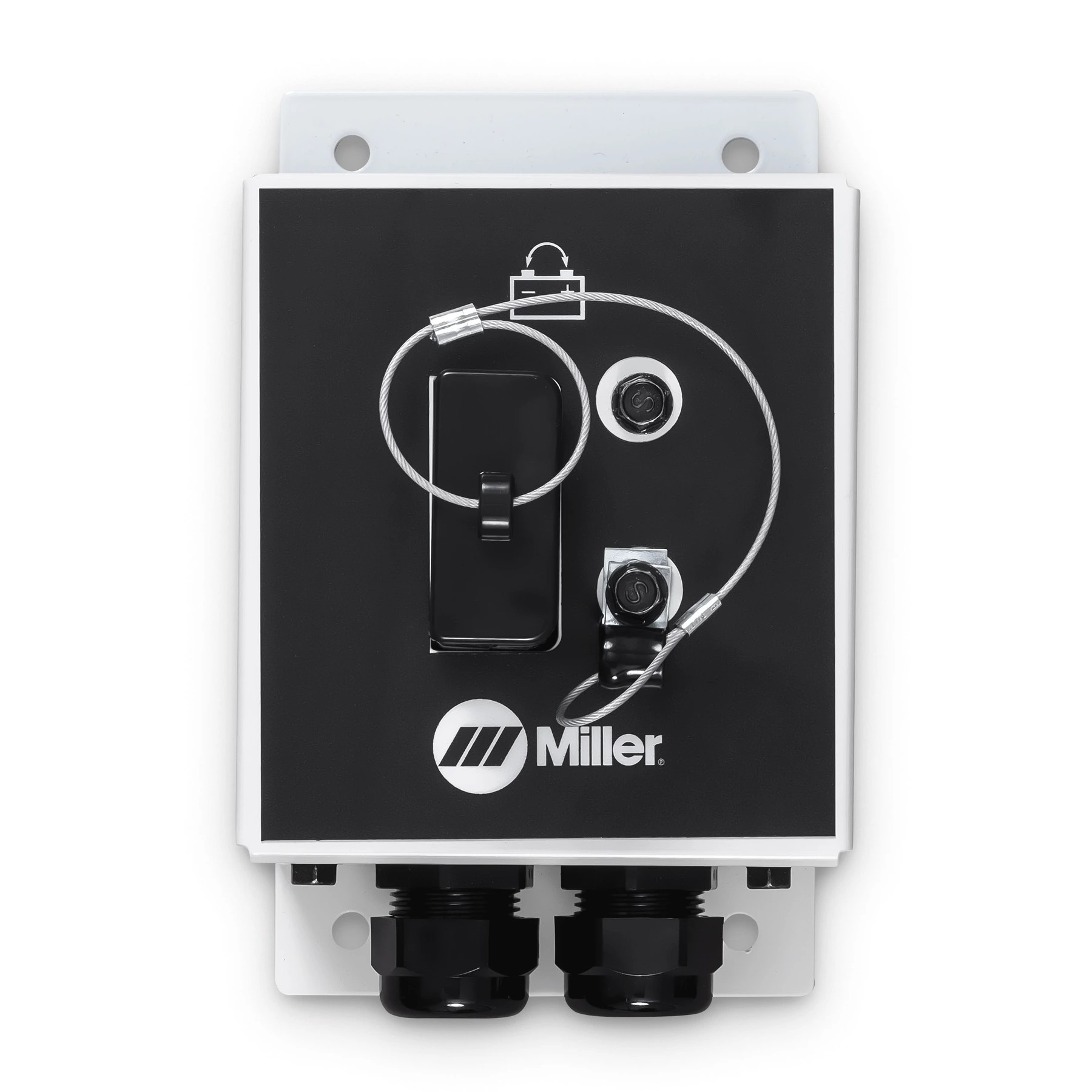

- Modular Remote Panels: Individual Panels Allow For Customized Setup For Quick, Easy Access And Reduce The Risk Of Injuries From Climbing Onto The Truck
Call for more information and pricing!
