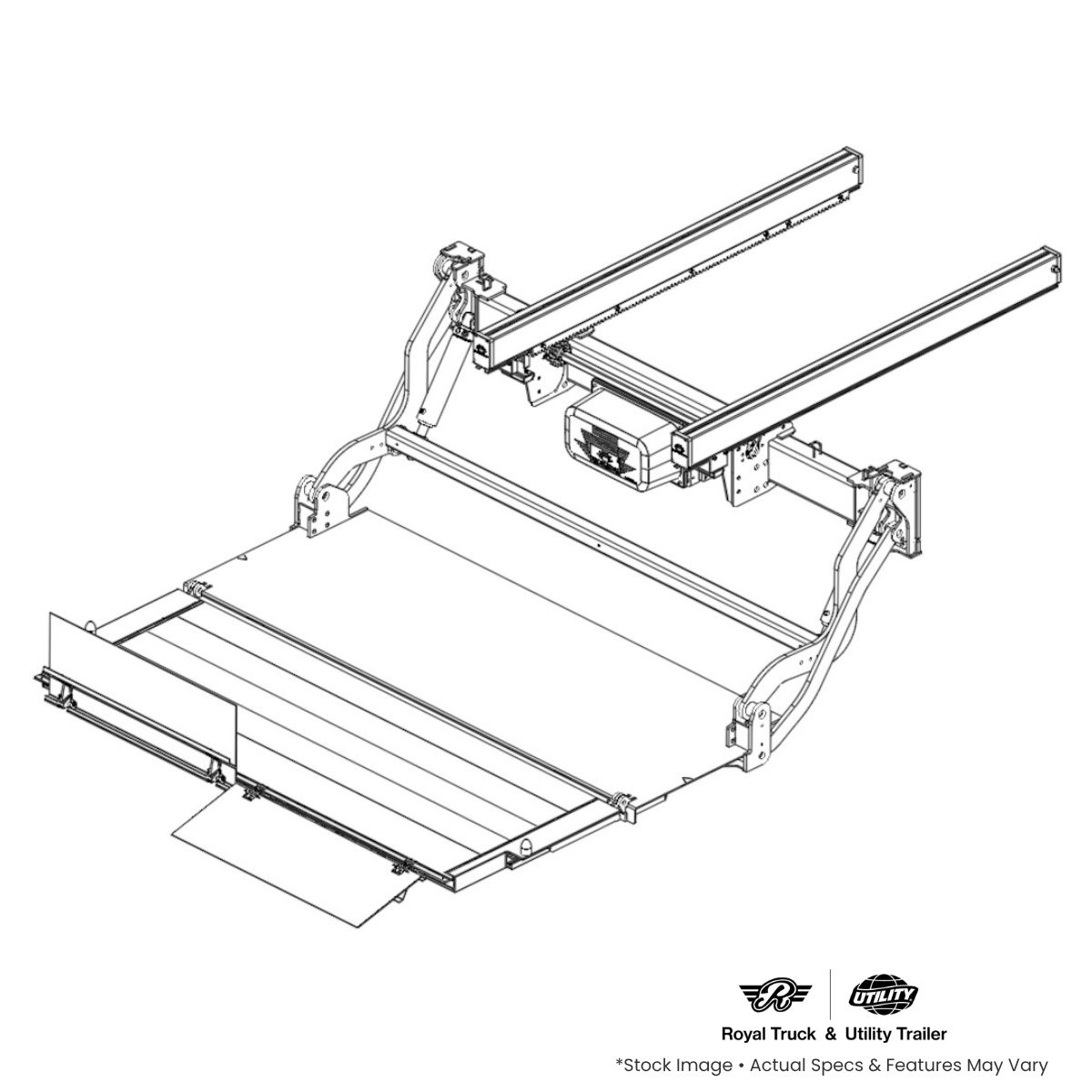

2026 Dhollandia | Liftgate | SKST
Heavy Duty Wide Arm Slider Lift With True Level Ride Platform
The SKST Series combines the advantages of a column lift with those of a slider lift. First, it inherited the flat level-ride platform, which is ideal to load and unload high stack carts/pallets, and cargo that could be unstable on the platform. (Conventional slider lifts are equipped with a wedge platform, so that wheeled loads have a tendency to roll-off; and tall top-heavy loads risk to tip-over).
The sliding mechanism of the latter safely stores the platform away underneath the chassis of the vehicle, eliminating almost completely the risk of impact damage when reversing into the loading docks (which is a genuine concern in the case of column lifts).
Platform Sizes:
– 85″ X 71″ + 16″ ARR at approx. 1525 LBS
Features – Can Be Customized Per Customer
- Lifting Capacity: 4,400#
- Durable Steel Platform Main Section With Weight Saving Aluminum Platform Tip
- 2-Piece 16″ Aluminum 3-Position Retention Ramp
- Specially Shaped Lift Arms, Adapted For insulated Floors And Rear Sills With Dock Buffers
- Wide Lift And Stabilizing Arm Configuration For Superior Load Stability On Platform
- True Level Ride Style Platform Action
- Low Maintenance Bushings And Grease Zerks In Pivot Points
- Sealed Weather-Proof Pump Unit With Thermal Protection On Electric Motor
- Self-Locking Valves On The Cylinders, With A Manual Override Function
- Dual Lift Cylinders For Increased Load Stability
- Full Length Ground And Power Cables
- Cylinder With Piston Rods In Hard-Chromed Stainless Steel
- Galvanized Finish On Steel Components
Call for more information and pricing!
