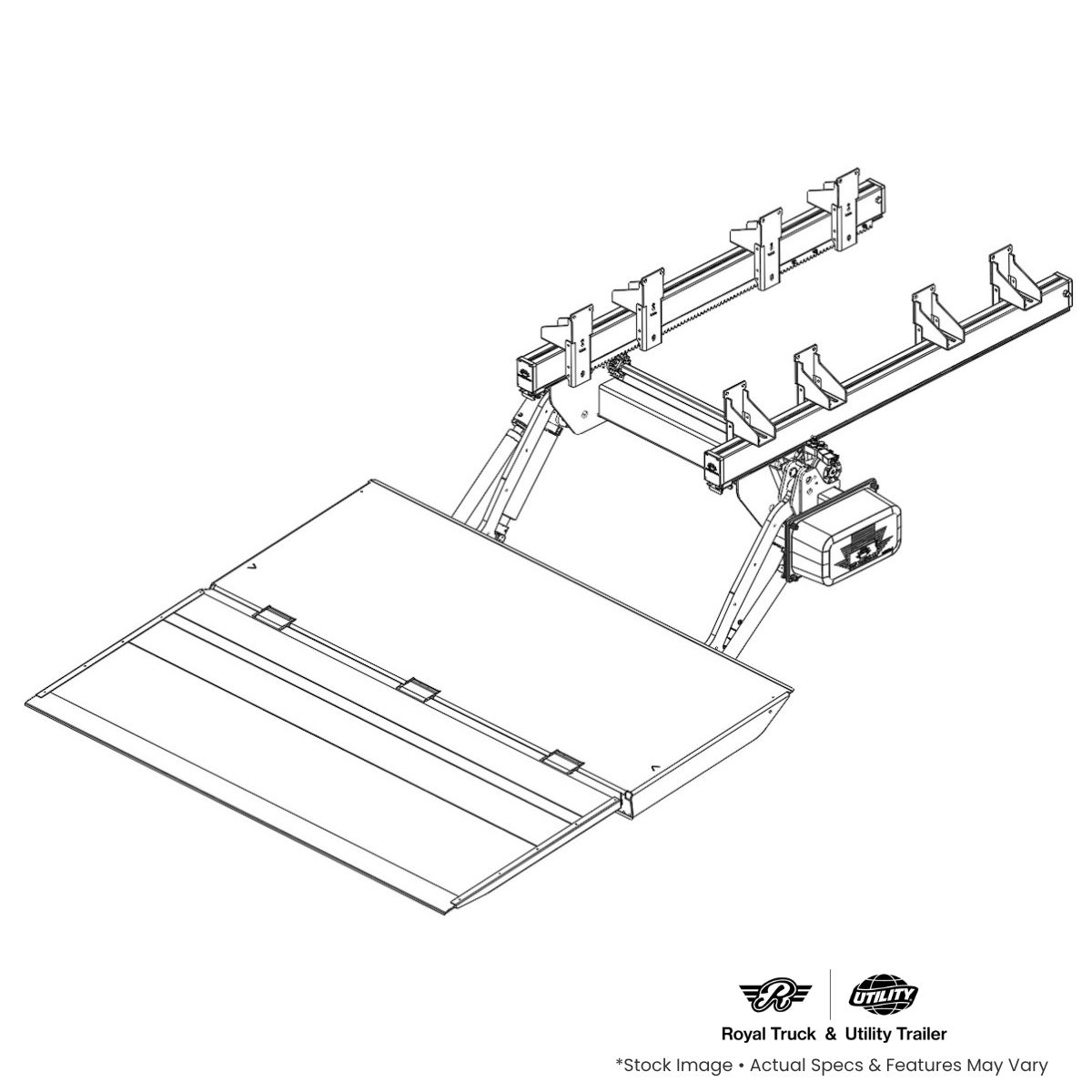

2026 Dhollandia | Liftgate | SMS
Heavy-Duty 4-Cylinder Slider Lift With Single Fold Platform
The DH-SMS is the heavy-duty slider lift. Its robust lift mechanism, reinforced platform and hydraulic system are designed for tough, heavy-duty applications and extreme uses. It is ideal for the most demanding applications, such as food & beverage distribution.
In its travel position, the DH-SMS is safely stored underneath the chassis of the vehicle. It is ideal for operators needing frequent fork lift loading or access to loading docks, and all applications requiring quick and free access to the cargo space.
DHOLLANDIA’s top of the range 4-cylinder slider lift is available in 2 functions: the DH-SMS designed for truck chassis and the DH-SMS outfitted with OAM056.1 designed for quick-fitting on trailer chassis.
Platform Sizes:
– 95″ X 79″ – overhang 80″
– 95″ X 83″ – overhang 80″
Features – Can Be Customized Per Customer
- Lifting Capacity: 5,500# to 6,600#
- Level Ride Style Platform Action With Auto-tilt Feature At Ground Level
- Dual Lift Cylinders For Increased Load Stability
- Low Maintenance Bushings And Grease Zerks In Pivot Points
- Sealed Weather-Proof Pump Unit With Thermal Protection On Electric Motor
- Self-Locking Valves On The Cylinders, With A Manual Override Function
- Deployment And Retraction Of Slider Lift Governed By Hydromotor For Smooth And Even Sliding Action
- Gravity Down Action For Platform When Lowering
- Full Length Ground And Power Cables
- Flashing Platform Lights Available To Maximize Safe Working Conditions And Platform Visibility
- Cylinder With Piston Rods In Hard-Chromed Stainless Steel
- Galvanized Finish On Steel Components
Call for more information and pricing!
