Description

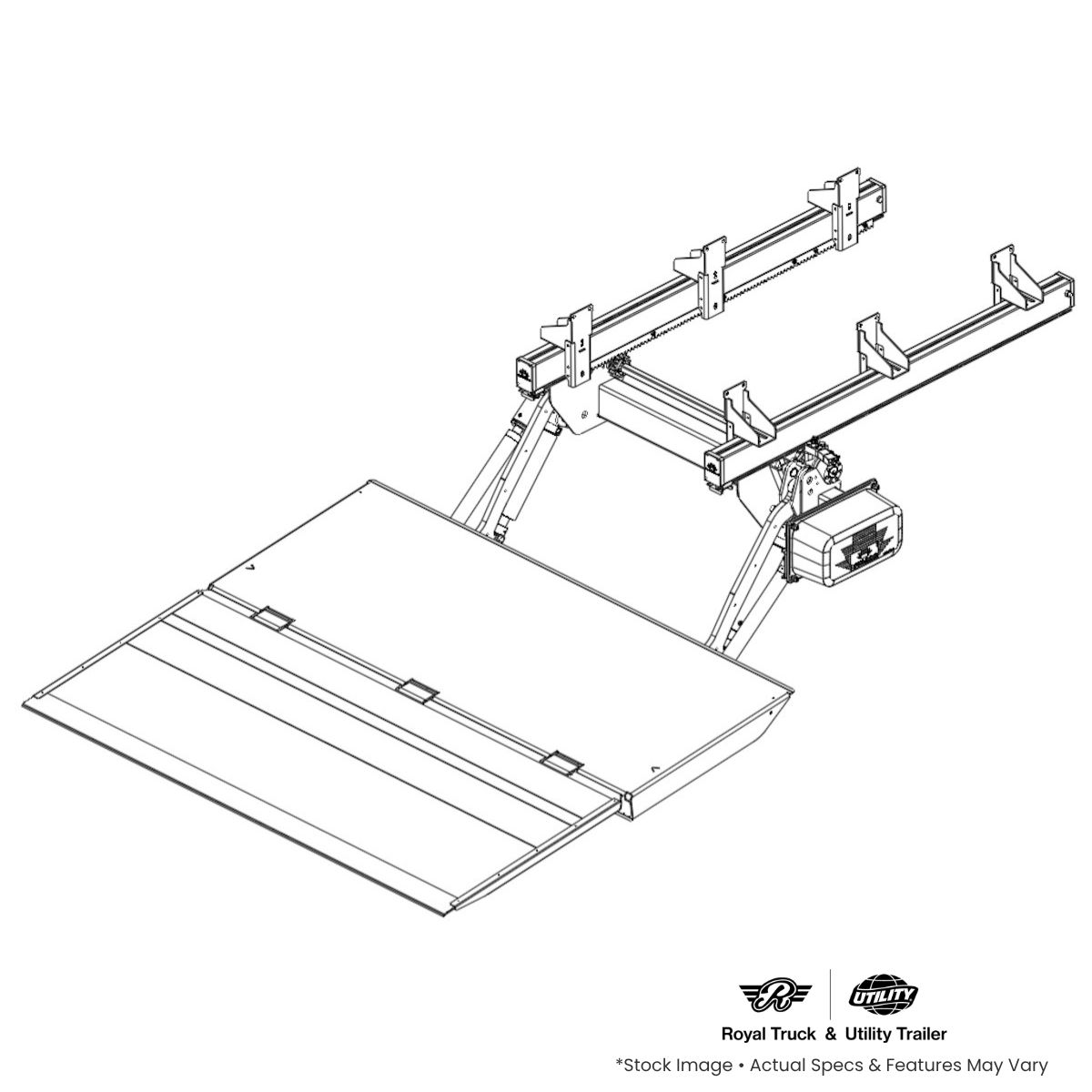

2026 Dhollandia | Liftgate | SMH
Medium-Duty 4-Cylinder Slider Lift With Single Fold Platform
The DH-SMH is the top seller slider lift in the medium capacity range. This versatile lift is able to handle various types of cargo, including pallets, up to max. 4400 lbs.
In its stored position, the DH-SMH is safely stored underneath the chassis of the vehicle. It is ideal for operations needing frequent fork lift loading or access to loading docks, and all applications requiring quick and free access to the truck body or trailer.
There are 2 functions: the DH-SMH designed for truck chassis, and the DH-SMH outfitted with OAM056.1 for quick-fitting on trailers.
Platform Sizes:
– 95″ X 71″ – overhang 73″
– 95″ X 79″ – overhang 77″
– 95″ X 71″ – overhang 73″
– 95″ X 79″ – overhang 77″
Features – Can Be Customized Per Customer
- Lifting Capacity: 4,400#
- Dual Lift Cylinders For Increased Load Stability
- Level Ride Style Platform Action With Auto-tilt Feature At Ground Level
- Low Maintenance Bushings And Grease Zerks In Pivot Points
- Sealed Weather-Proof Pump Unit With Thermal Protection On Electric Motor
- Self-Locking Valves On The Cylinders, With A Manual Override Function
- Deployment And Retraction Of Slider Lift Governed By Hydromotor For Smooth And Even Sliding Action
- Gravity Down Action For Platform When Lowering
- Full Length Ground And Power Cables
- Flashing Platform Lights Available To Maximize Safe Working Conditions And Platform Visibility
- Cylinder With Piston Rods In Hard-Chromed Stainless Steel
- Galvanized Finish On Steel Components
Call for more information and pricing!
