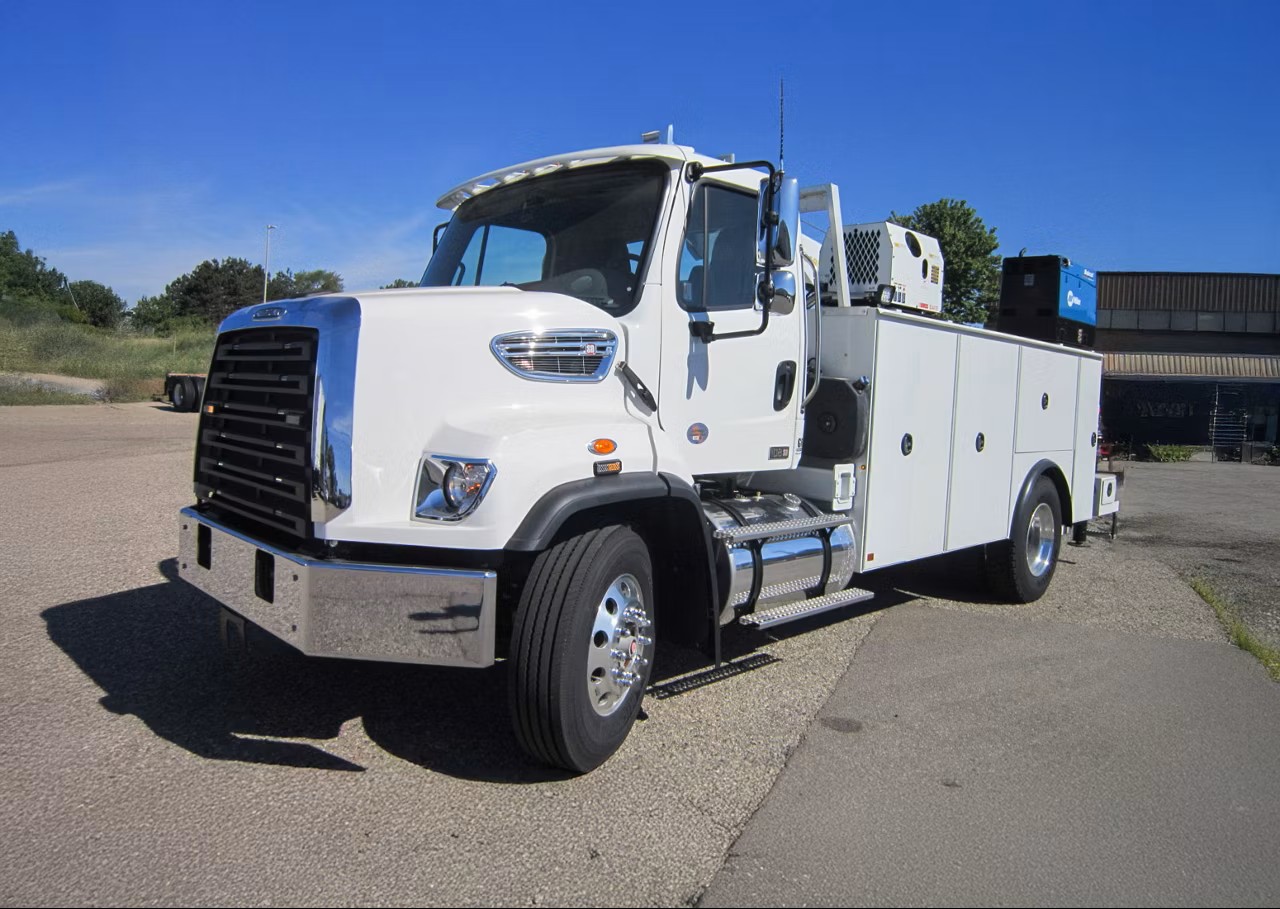

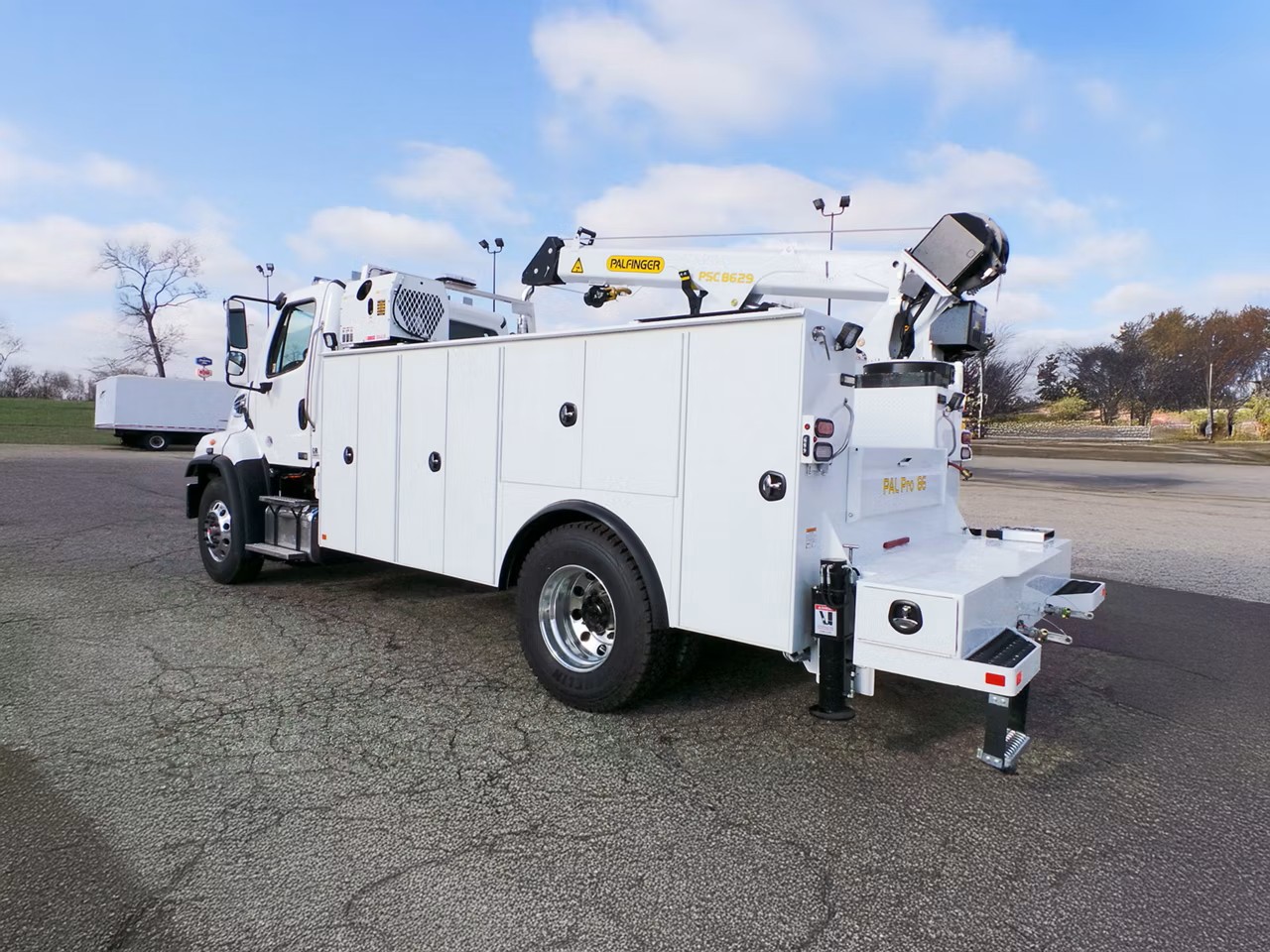

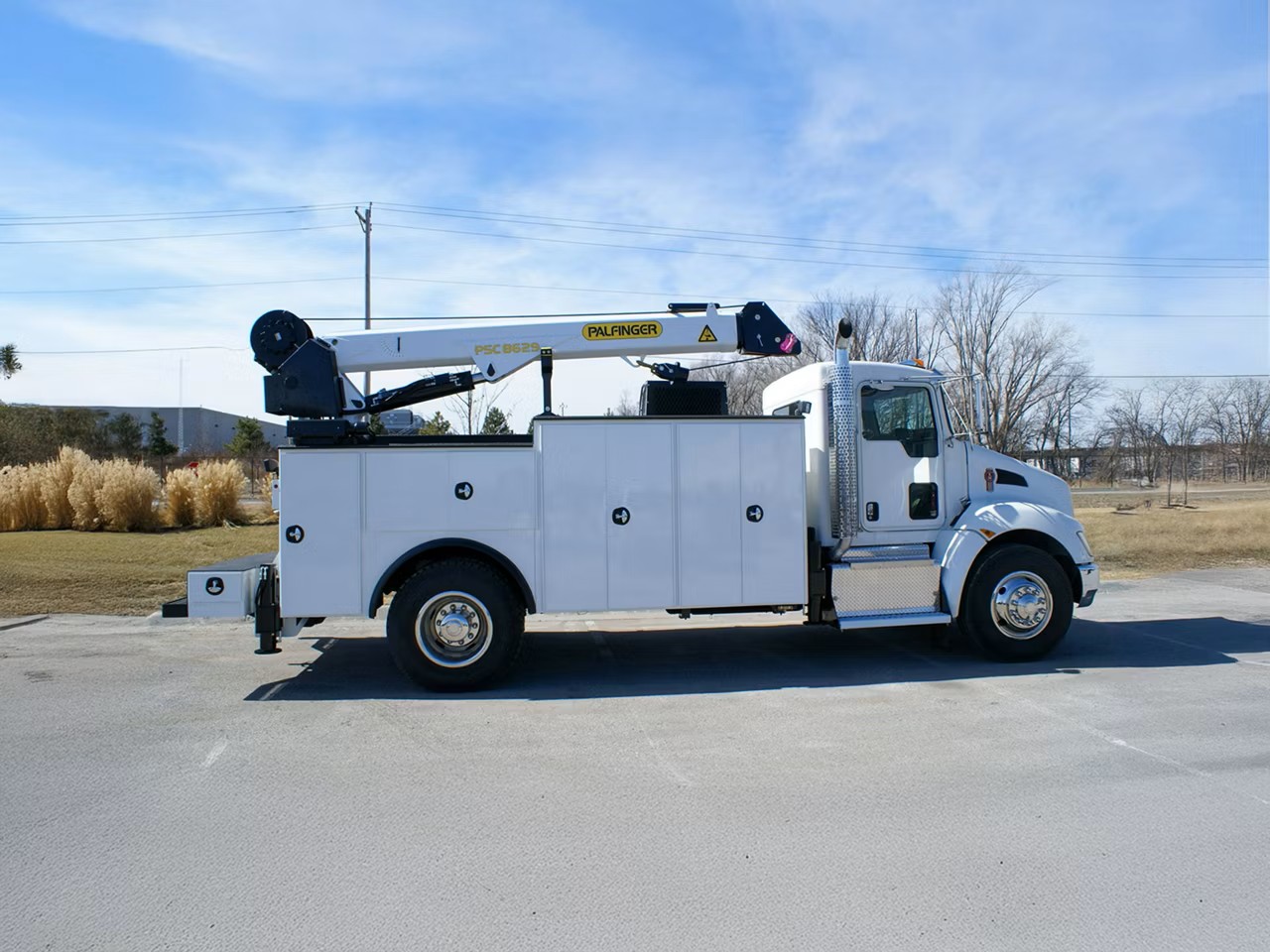

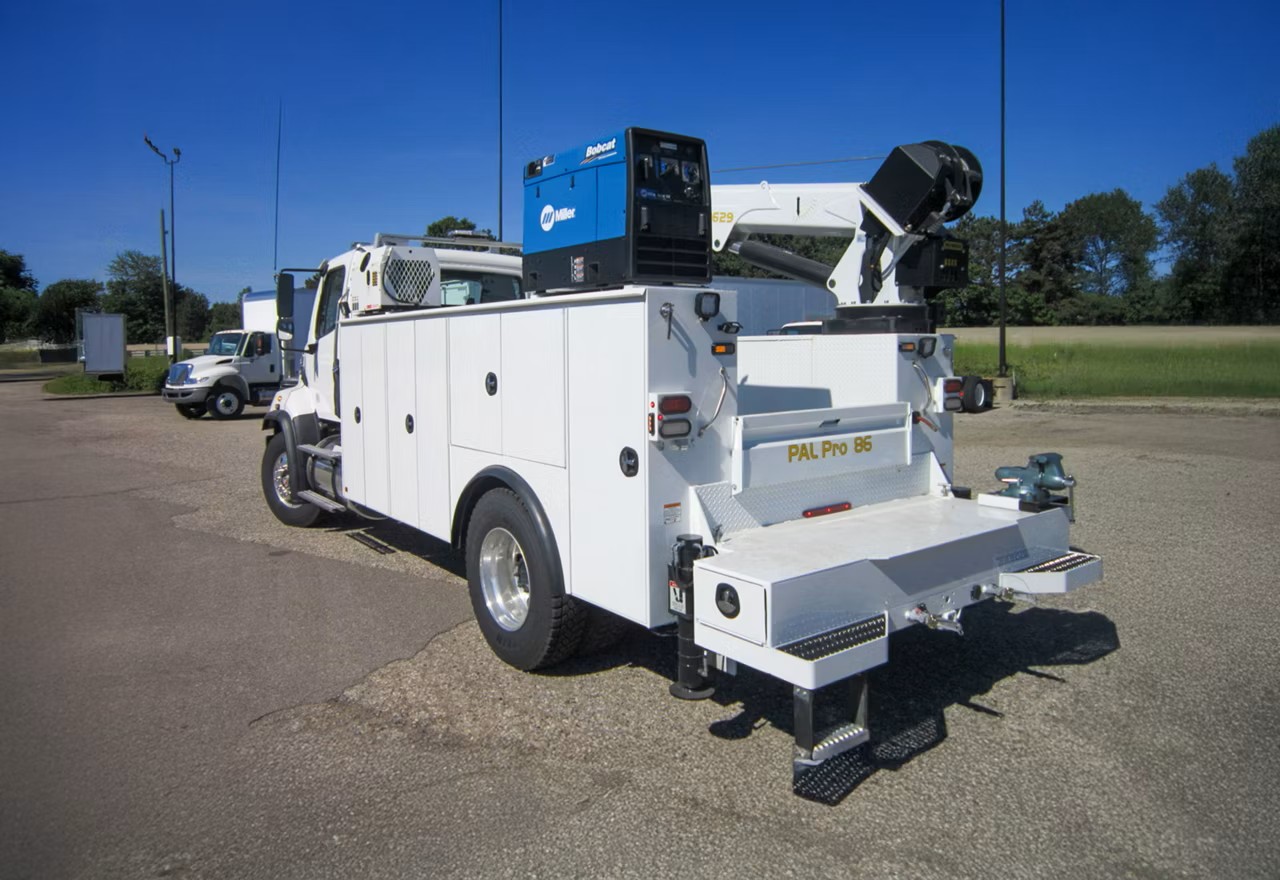

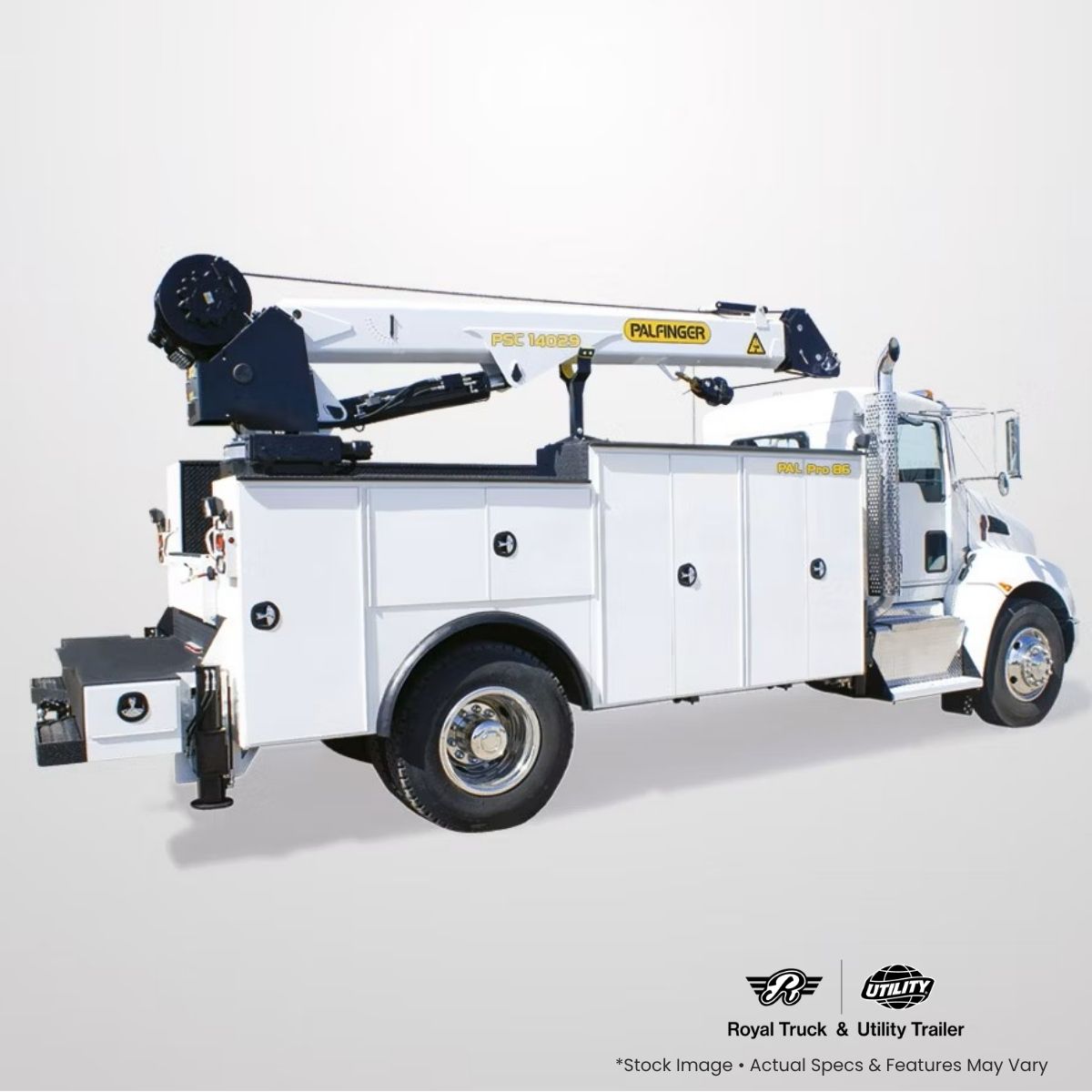

2026 Palfinger | Crane / Service Body | PAL Pro 86
Take on heavy-duty lifting with PAL Pro 86—the largest mechanic’s body we offer. With 86,000 ft.-lbs. crane capacity, rear and front outriggers, and A-60 galvanneal steel, it’s engineered for Class 6–7 chassis and maximum durability.
Highlights & Optional Features:
- Length: 14′
- 52″ Tall H Sidepack Compartments
- 14″ Tall One-Handed Tailgate
- Street-Side And / Or Curb-Side Front Compartments Raised To 60″
- Street-Side All Compartments Raised To 60″
- Treadplate Compartment Top Overlays
- Adjustable Non-Marring Boom Support E-Coated Black
- Line-X Ultra Interior Compartment Coating For Greater Protection
- Double Panel Doors With Internal C-Channel Stiffeners, Adhered With Structural Adhesive
- PALFINGER’s 12 Step Electrophoretic Deposition Dip Process Cleans The Body And Applies Primer To The Metal Surfaces, Ensuring Complete Coverage And Automotive Grade Corrosion Protection
- Dual Extending Rear Outriggers And A Single Front Extending Stabilizer Provide Maximum Overall Lifting Performance
- Every Raised Compartment Comes With PALFINGER’s Engineered Gussets For Increased Protection Against The Body Cracking In The Door Corner
- Hybrid Torsion Box Designed For Crane Applications And Utilizing 10GA A-60 Galvanneal Steel Eliminates Truck Frame Twist And Side Pack Deflection
- Tubular 3”x 5” And 4″ X 6″ Structural Steel Cross-Members Interlace The Torsion Box To Support Compartment Loads
- Integrated Outrigger Tube Reduces Stress On Chassis Frame By Transferring The Crane Load Directly To The Ground
- Rear Shear Steel Plates Prevent Lateral Body Shift On Chassis, Providing Additional Support For Crane Loads
- 2” I.D. Integrated Hitch Receiver Tube, Attached Directly To Body Structure Rated For 16,000lbs Towing Capacity With 15-Ton Pintle Reinforcement Plate Included
- Boom Rest, Welder, Compressor, EnPak, Air-n-Arc And AirPak Mounts Are Available From The Factory To Eliminate The Need To Drill Holes In The Body
- A True Mechanics Workbench, Featuring A 30” Work Bench Bumper, Receiver Hitch, 5/16” Steel Top Plate And Thru Compartment For Additional Storage
- Headache Rack Light Bar Bracket With A Punched Screen Prevents Cargo Area Contents From Making Contact With The Rear Window Of The Cab – Saving You From Costly Rear Window Repairs & Cleanup
- Ergonomically Designed Handrail Option, With A Stable Surface To Grip, For Your Added Security Against Tripping Or Slipping Hazards
- Cranes Installed At Factory Rated Up To 14,000lbs Capacity And 86,000 Ft-Lbs Lifting Capacity
- Boom Extensions Available Up To 29′
- Personnel Basket With Quick-Connect Setup, 37′ Reach, Collapsible Storage Box, And Lightweight Design Available
- Hydraulic Deck-Mounted Rotary Screw Air Compressor That Deliver 45 CFM At 150 PSI With 100% Duty Cycle Available
Call for more information and pricing!
