Waltco MDL-16

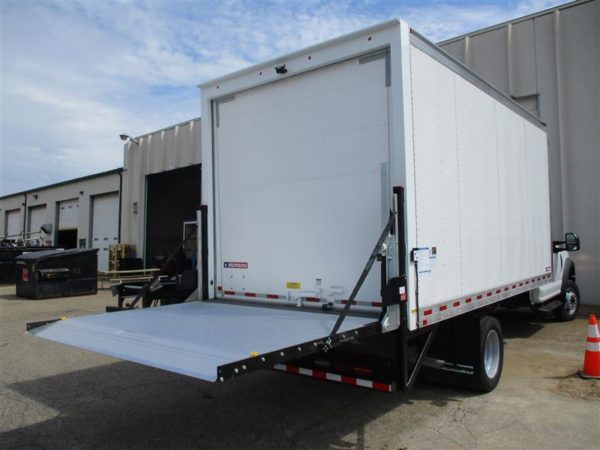

A level-ride platform railgate designed for easy handling of wheeled carts, bins, and racks. Railgates have vertical tracks that weld to the rear frame of a pick-up truck, service body, stake body, truck body or trailer. The platform travels in these tracks via cables or chains in conjunction with a hydraulic cylinder, or the use of two hydraulic cylinders directly attached to the platform. In the travel position, the platform stores over the rear door.

  • 1,600 lb lifting capacity
  • 54″ D X 89″ wide aluminum platform
  • Dual foot-activated cart stops
  • 12″ fixed approach ramp
  • LED tail light kit (2) red (1) white per side
  • Black finish
  • Hydraulic platform closure (gravity open)
