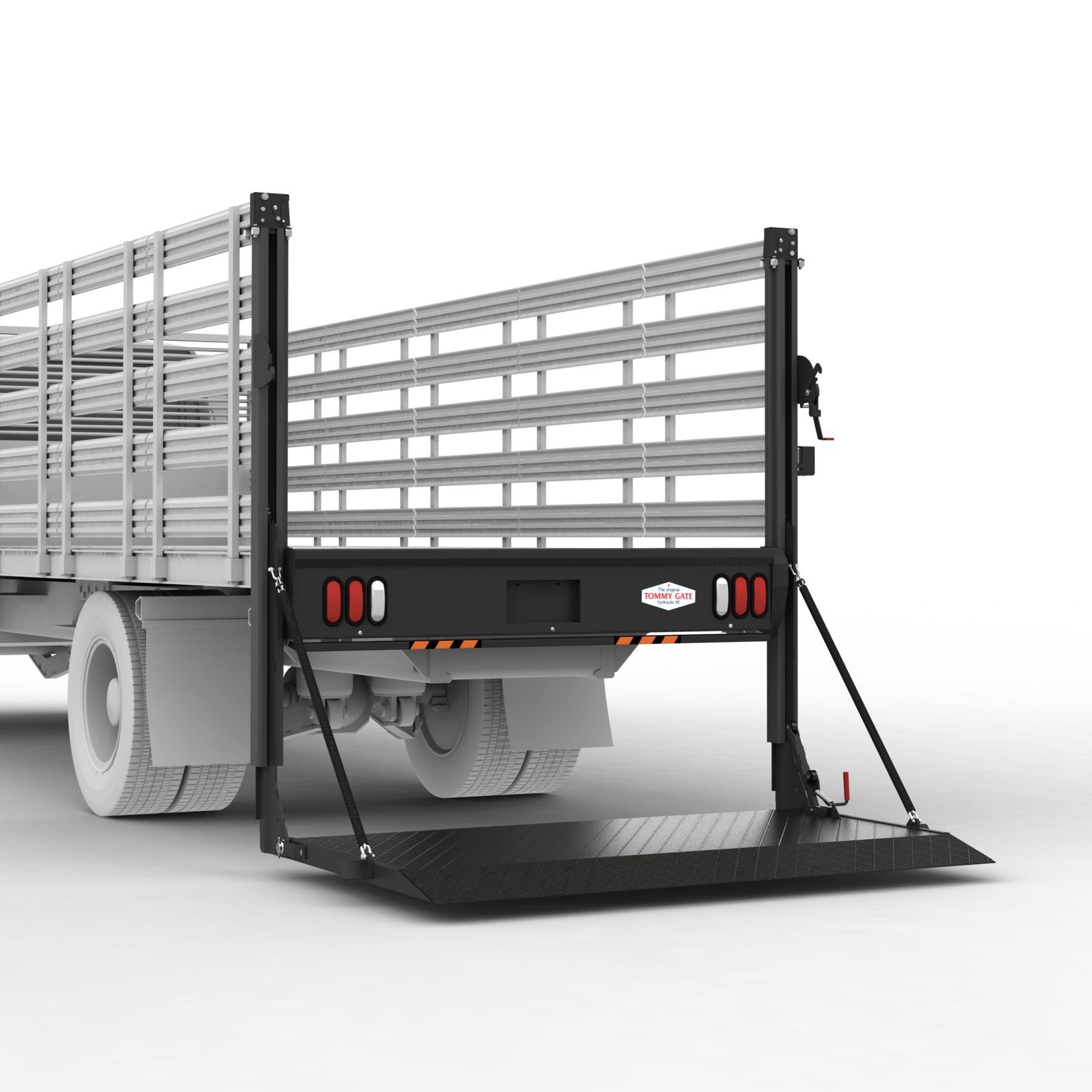

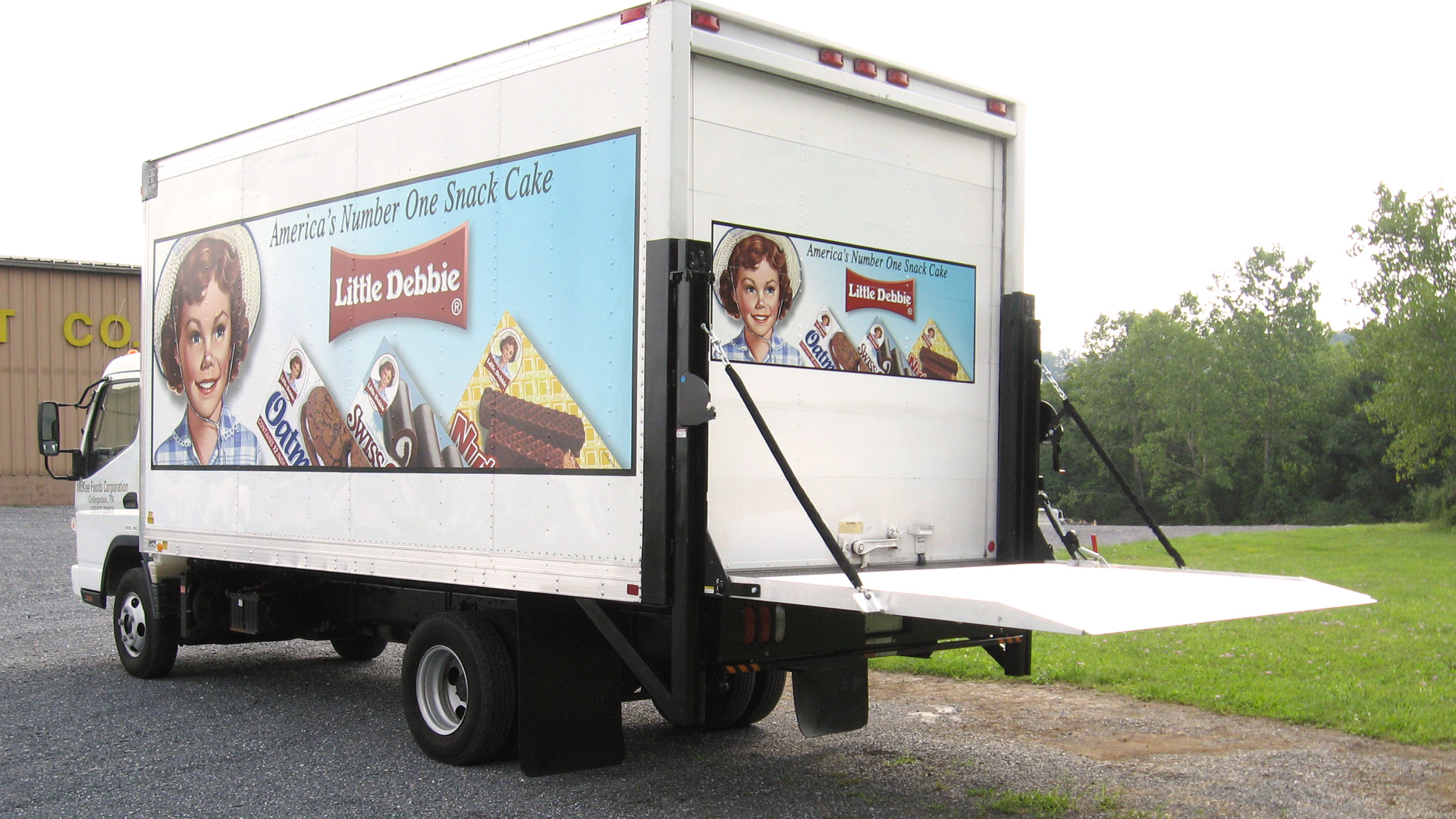

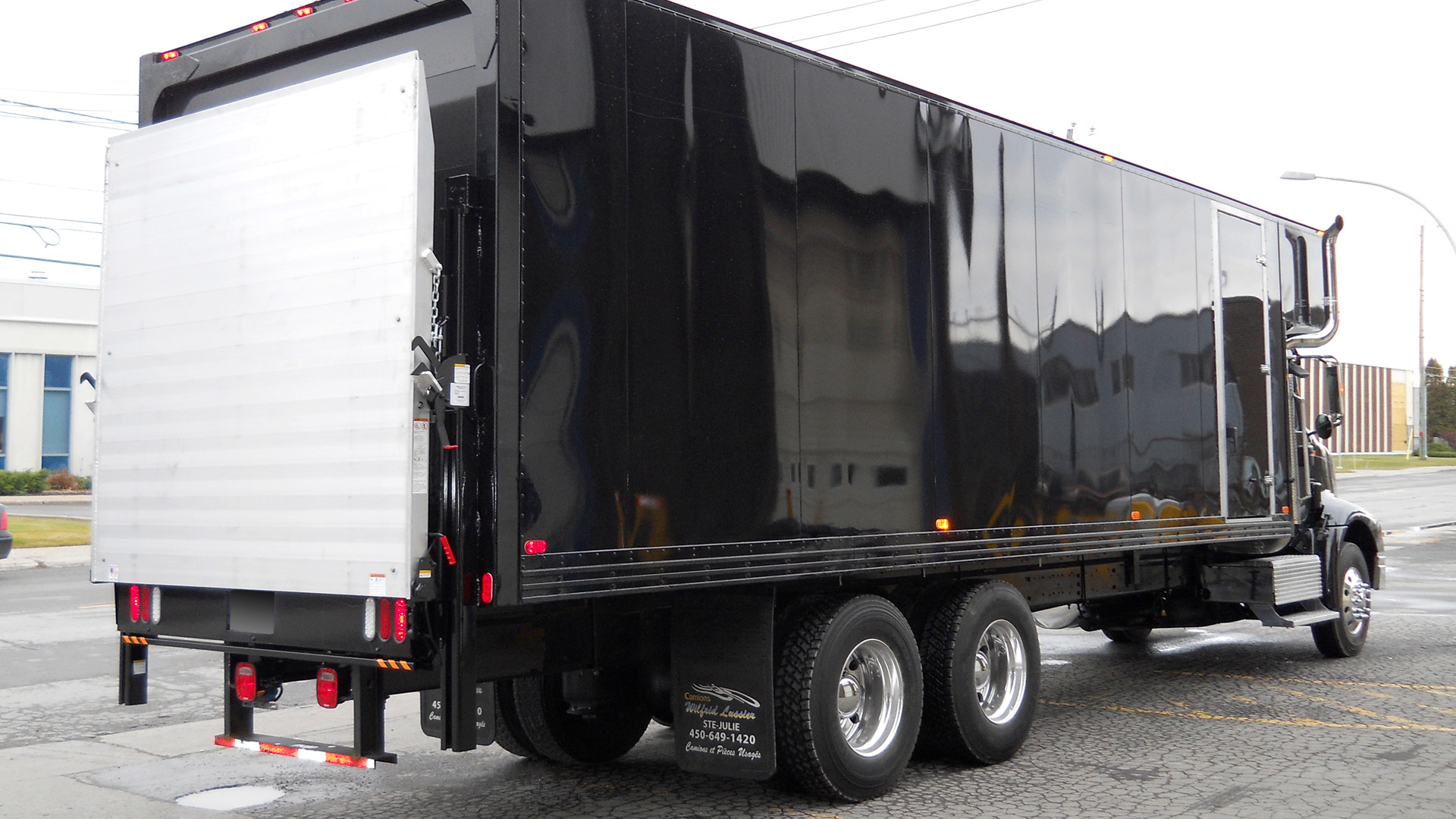

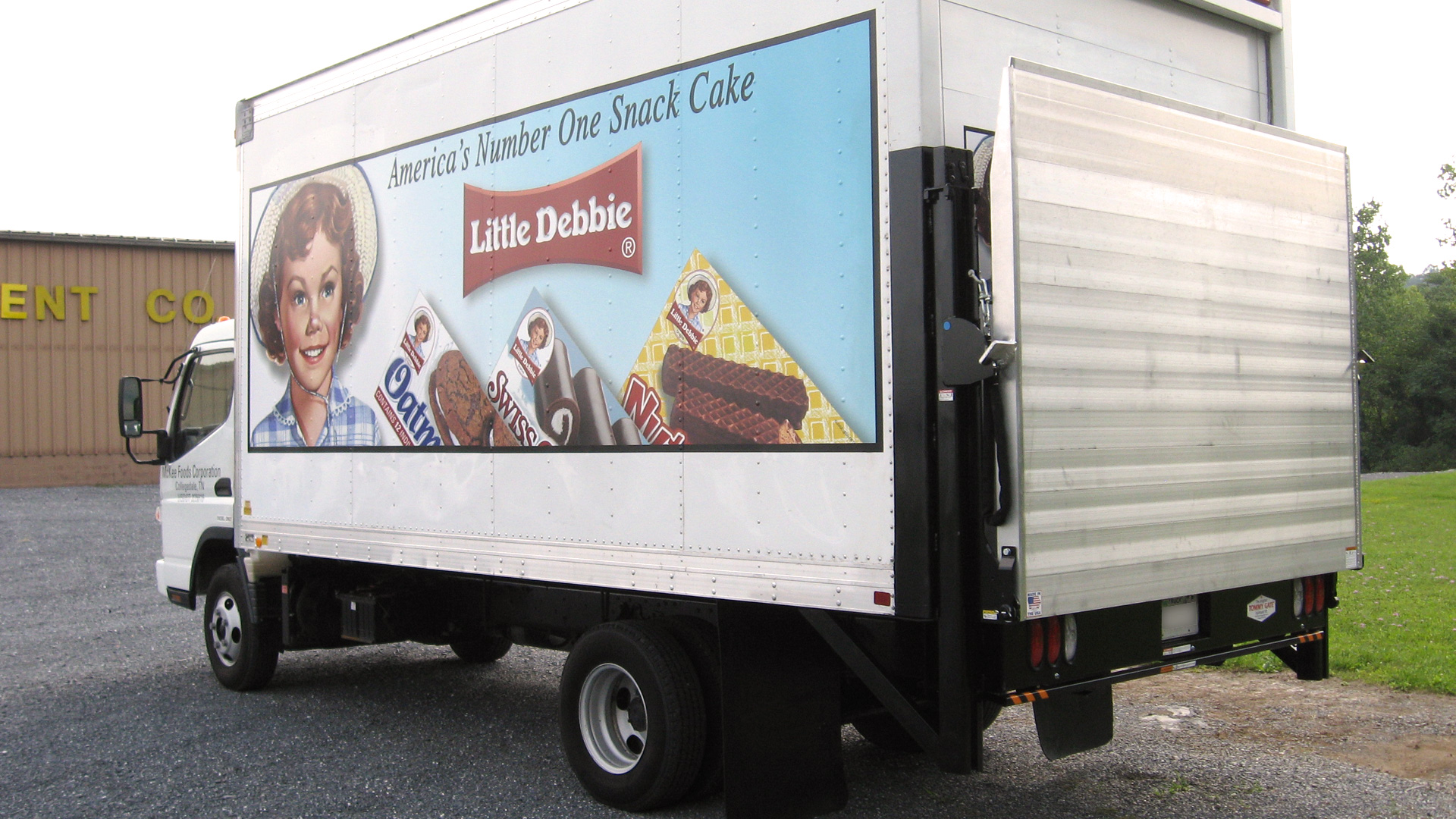

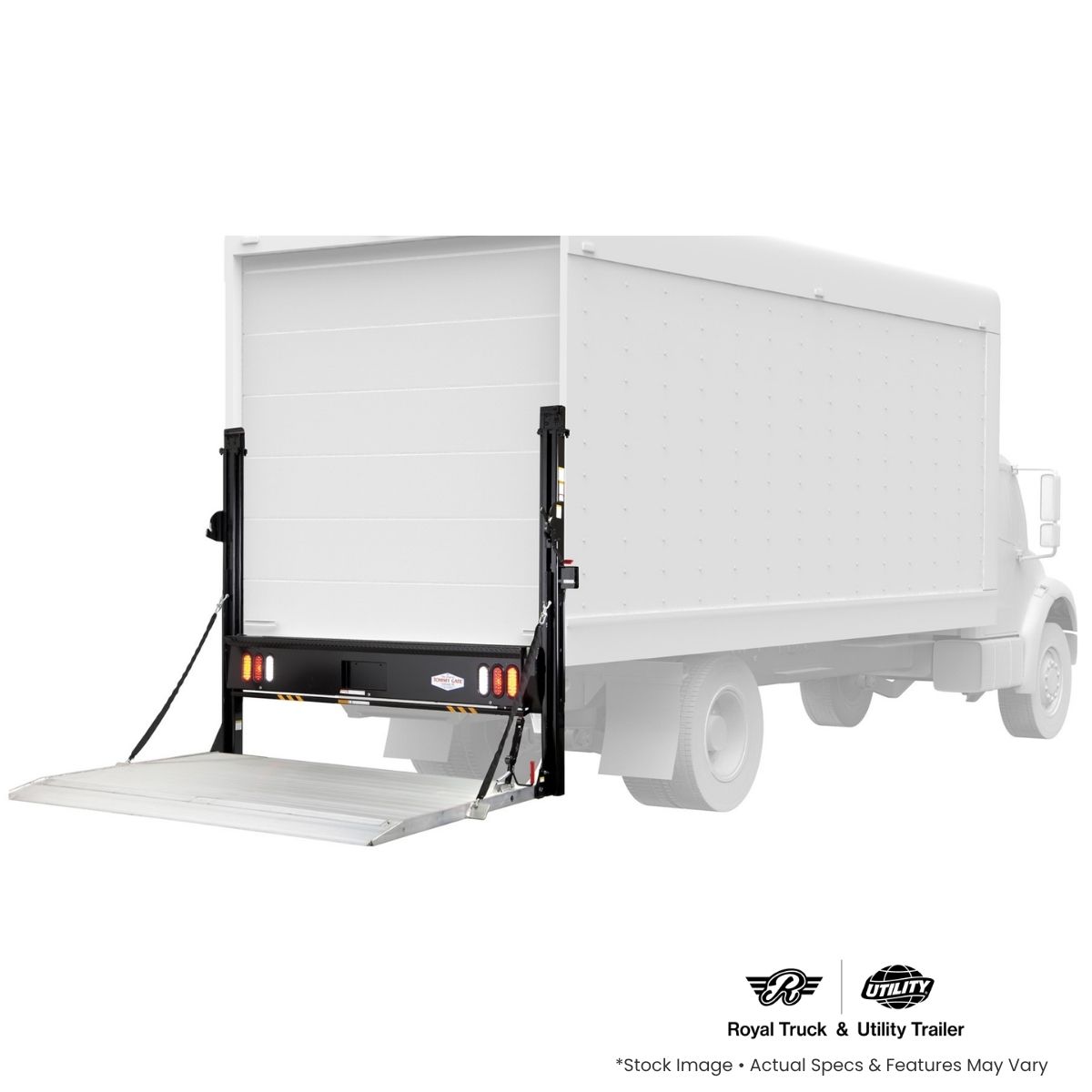

2026 Tommy Gate | Liftgate | Railgate: High-Cycle Series
High-cycle models apply a steel roller and leaf-chain pulley system to maximize smoothness of motion, endurance, and strength. This medium-duty railgate is ideal for high-cycle applications in any environment. These lifts are built with the highest quality components and place a priority on function and safety.
Standard Features:
- 2500# to 3000# Lifting Capacity
- Models Available For 90″, 96″, and 102″ Wide Bodies
- Steel Rollers Rail Style Travel Vertically Within The Rail Track
- Single-Cylinder Hydraulic System
- High-Cycle Durability
- Higher Lifting Capactities
- Larger Platforms
- Dock Compatible
- Low-Profile Fixed Toggle Control
- Power Cable With Full-Length Ground Ensures Consistent Power Supply
- 150-amp Circuit Breaker Protects Vehicle’s Electrical System, Disconnects Power For Repairs
- Recessed LED Light Kit
- Safety Trip Bar That Disengages The Lift When An Object Is Detected Between The Rising Platform And The Liftgate Mainframe
- Self-Close Cam-Arm System That Opens And Closes The Platform Automatically
- 12″ Platform Taper One-piece Taper For Steel Treadplate & Extruded Aluminum Platforms
Optional Features:
- Railgate Mounting Component Kit To Reinforce A Tommy Gate Railgate Installation On A Flatbed Or Stake Body
- Rubber Platform Bumpers Set Of Four Or Six, Depending On Platform
- Above-Bed Travel Allows Platform To Travel Above Truck Bed-Height For Dock Loading
- Split Cart Stops Located In Platform Taper, Secures Wheeled Cargo
- Auxiliary Battery Box Provides Adequate Power On Longer Straight Truck And Trailer Applications
- 5″ Aluminum Extrusion Extruded Aluminum Platforms Are Available In Any Depth, 35″ to 70″, In 5″ Increments
- Dual Controls – Low-Profile, Fixed Control And Remote Pendant Control
- Remote Pendant Control Mounting Bracket And Hook To Store Pendant Control Inside Vehicle
- In-Cab Shut-Off Switch Enables Power To Be Disabled From Within The Truck Cab
Call for more information and pricing!
