Description
2026 Waltco | Liftgate | EM

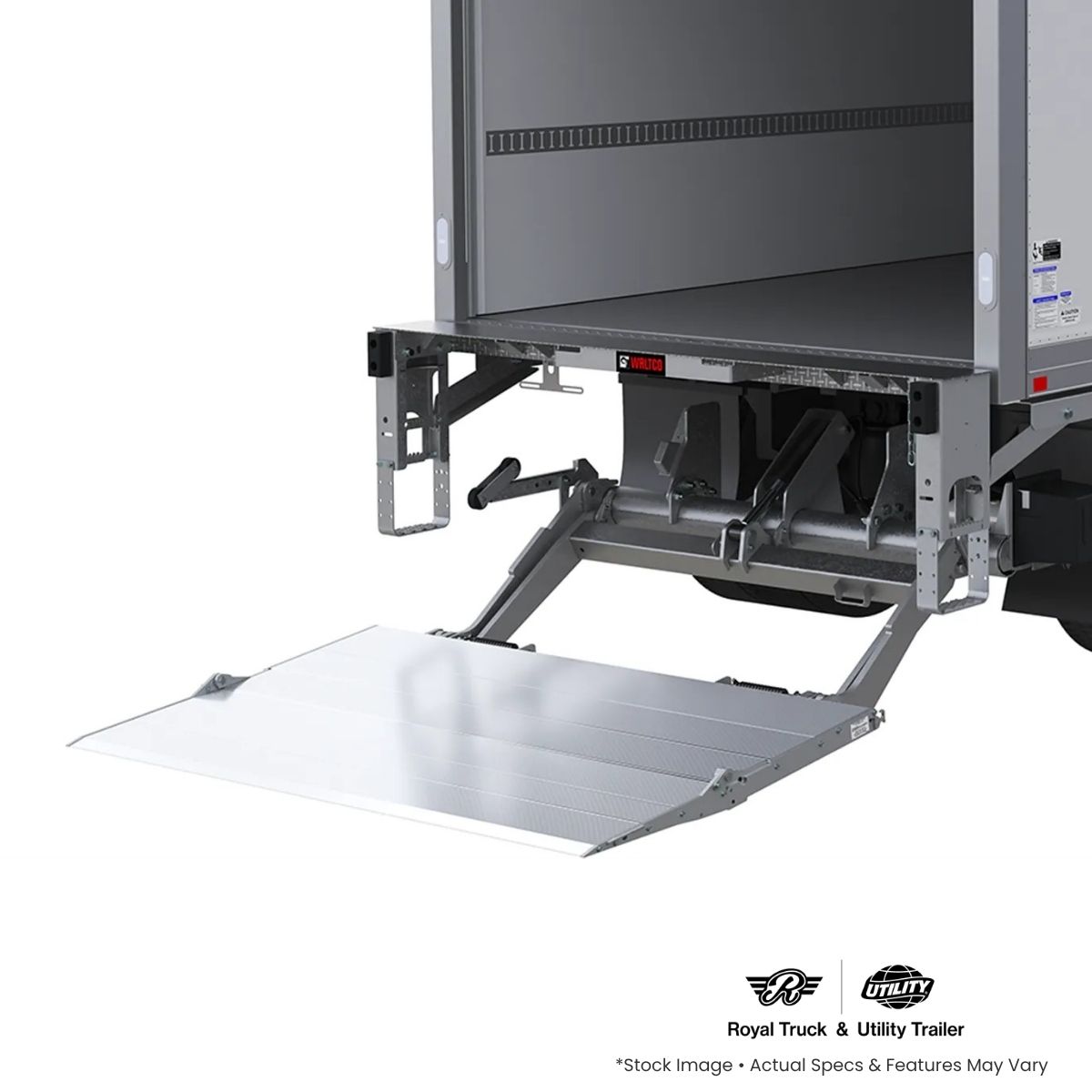

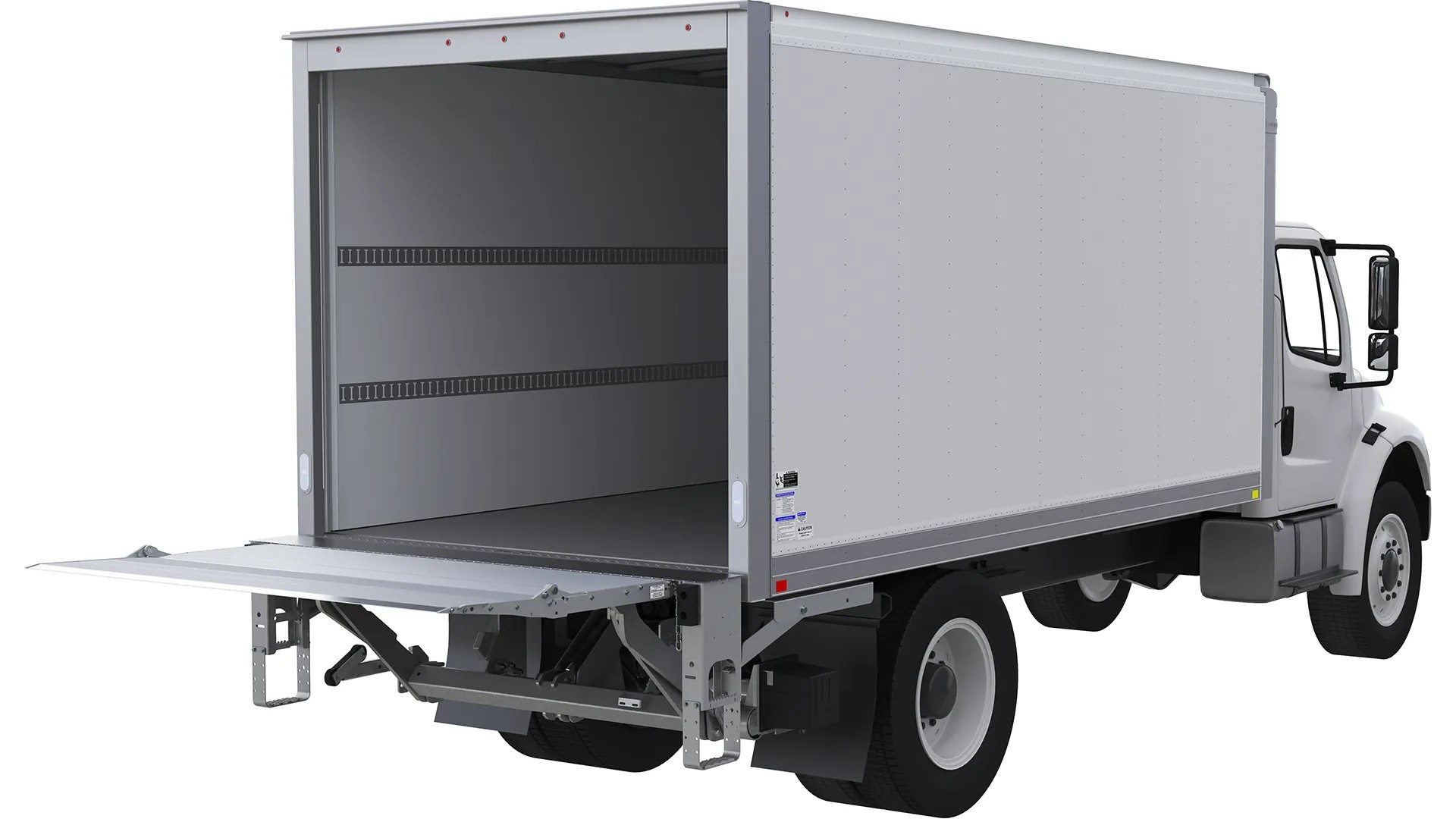

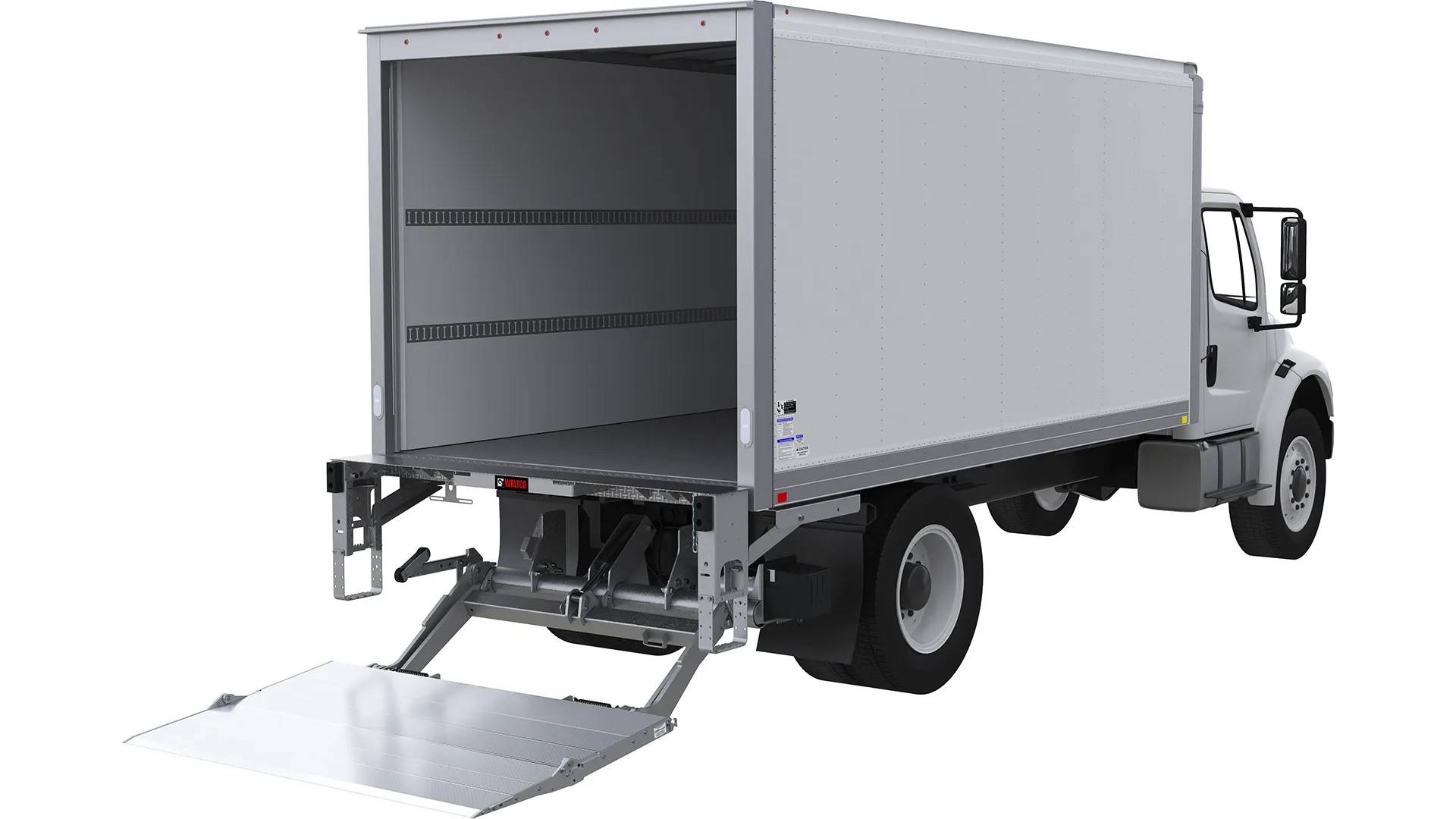

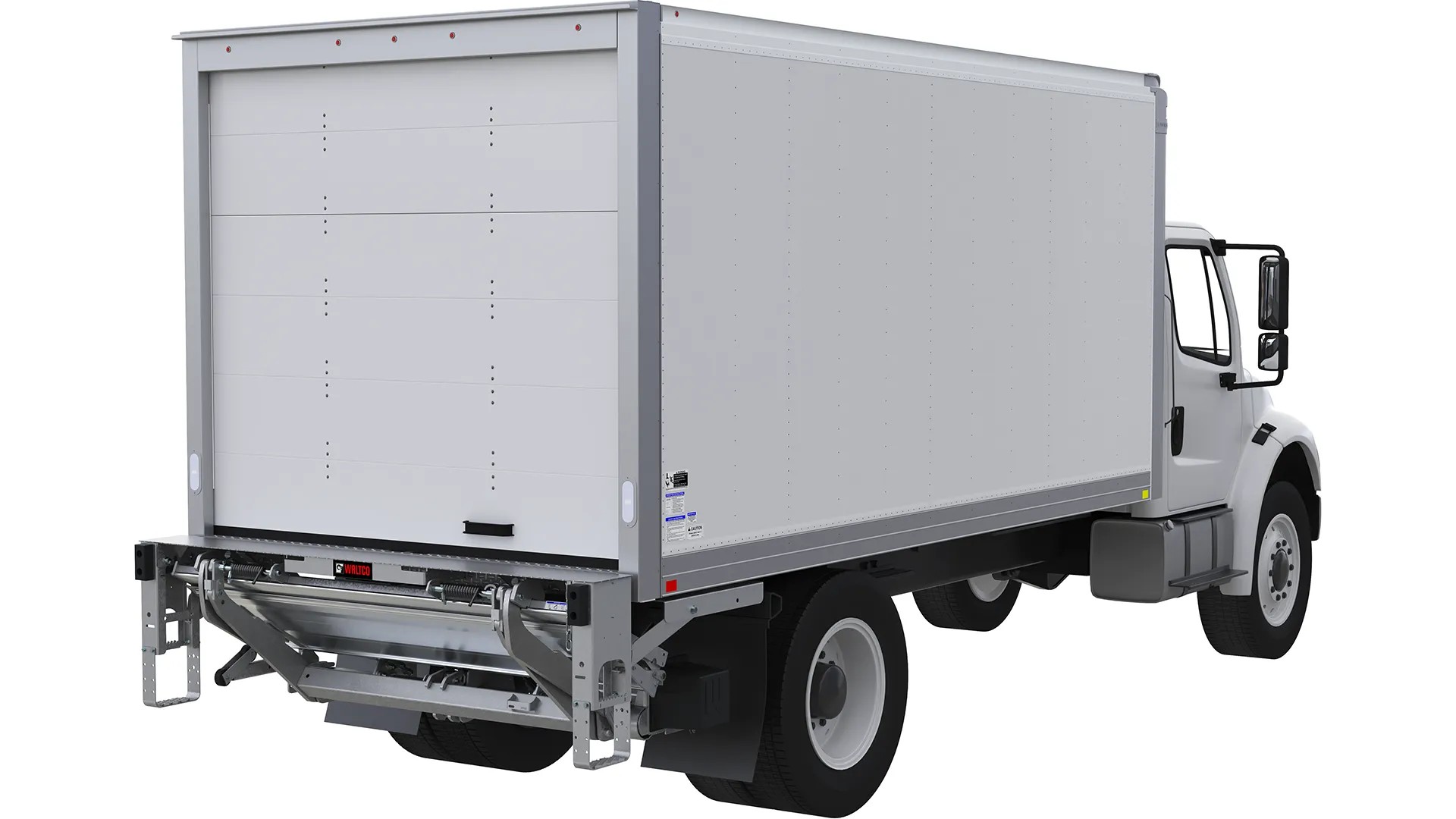

A tuck-under liftgate featuring a large, gently sloped, loading platform that stows under the truck. An efficient design with a two-section, folding platform that can be stored under the body floor, enabling easy access to the cargo area without activating the lift. The liftgates are welded to the frame of the vehicle chassis to ensure optimum safety.
Standard Features
- Lifting Capacity: 2500# to 3300#
- Platform Width: 84″
- Platform Depth: 48″ to 50″
- Bed Height: Minimum 37″ to Maximum 54″
- Steel or Aluminum Construction
- Wedge Ramp
- Hydraulic Locking Valve
- Power Down
- Torsion Spring Assist
- Powder Coat Finish With Zinc Primer
Optional Features
- Cab Shut-Off Switch
- Cart Stops
- Dual Controls
- Hand-Held Pendant Controls
- Single / Double Fixed Step Dock Bumpers
- Auxiliary Battery Kit
- Bolt-On Bed Extension
- Galvanized Option Available
Call for more information and pricing!
